Overview

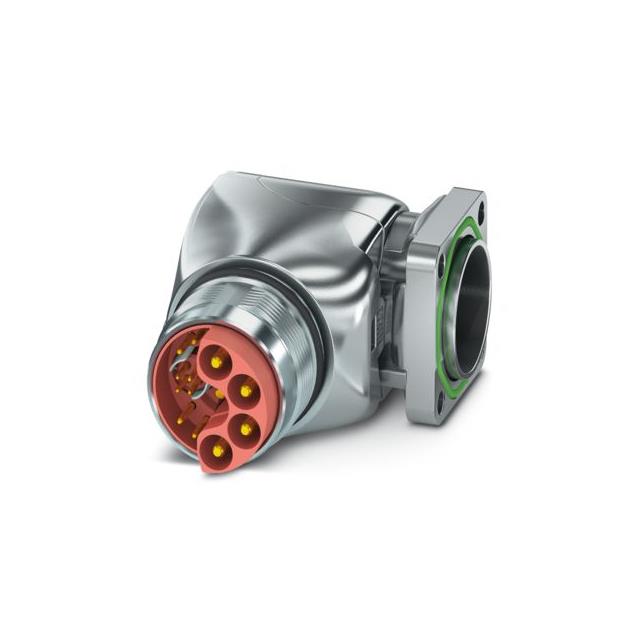

Phoenix Contact part number 1568968, designated as SH-8EPD68AAC00S, is an M23 device connector designed for front mounting. It belongs to the SH series and features an angled rotatable design. The connector has 14 positions (6+4+4+PE) and supports standard and SPEEDCON interlock locking mechanisms. It is shielded and rated IP67.

Feature Summary

• Angled rotatable design for flexible installation
• Supports standard and SPEEDCON interlock systems
• Shielded construction for signal integrity
• IP67 protection rating

Applications

• Industrial automation control panels
• Sensor and actuator connections
• Machine tool wiring
• Process instrumentation interfaces

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required cable diameters and contact arrangements. Confirm that the selected variant matches the intended SPEEDCON or standard locking mechanism requirements for your application infrastructure.

Selection Notes

Select this connector when a robust, shielded M23 interface is required for front panel mounting. Ensure the mating cable assembly supports the specified pin count and shielding termination needs. Verify space constraints accommodate the angled form factor.

Part Context

This component is part of Phoenix Contact's SH series of device connectors. The series offers various configurations for industrial connectivity needs, emphasizing durability and ease of installation in demanding environments.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Ensure any alternative maintains identical M23 threading, pin count, and shielding specifications.
