Product Detailed Parameters
- Description：Interconnect Misc
- Series：*
- Mfr：Phoenix Contact
- Package：Bulk
Download product information
Overview

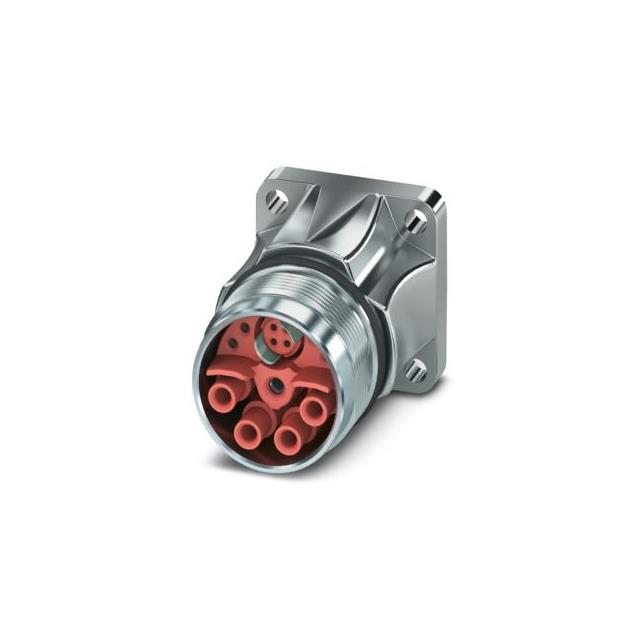

Phoenix Contact part number 1568969 is an M23 device connector belonging to the SH series. It features a front mounting design with a straight orientation and shielded construction. The component is a socket type connector with 15 pins, utilizing crimp termination for wire connections. It supports conductor cross-sections ranging from 0.06 mm² to 4 mm². The connector provides IP67 protection when mated and is rated for 8A current at 50V. It includes a shield connection and offers a minimum of 100 mating cycles.
Feature Summary
- Front mounting design for panel installation
- Shielded construction with integrated shield connection
- Interchangeable cassette system for quick blade changing
- Ergonomic design for effortless application
Applications
- Hybrid applications requiring robust connectivity
- Industrial automation systems needing IP67 rated connections
- Panel mounted device interfaces
- Applications utilizing PVC-insulated flat cables
Procurement Notes
Verify the specific ordering suffix SH-8ESD68AWA00S against your technical requirements. Confirm that the 15-pin configuration and M23 interface match your system design. Ensure the crimp termination method aligns with your assembly tools. Check compatibility with the interchangeable cassette system if blade replacement is anticipated. Validate IP67 rating needs for the intended environment.
Selection Notes
Select this connector for applications requiring a shielded M23 socket with front panel mounting. The 15-pin layout suits hybrid signal and power transmission. Consider the 0.06 to 4 mm² wire range for conductor compatibility. The ergonomic design facilitates manual assembly. Verify that the 100-cycle durability meets operational lifespan expectations.
Part Context
This component is part of Phoenix Contact's SH series of device connectors. The series emphasizes modular design through interchangeable cassettes. These connectors are engineered for industrial environments demanding reliable data and power transmission. The M23 size allows for higher pin counts compared to smaller circular connectors.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
