Overview

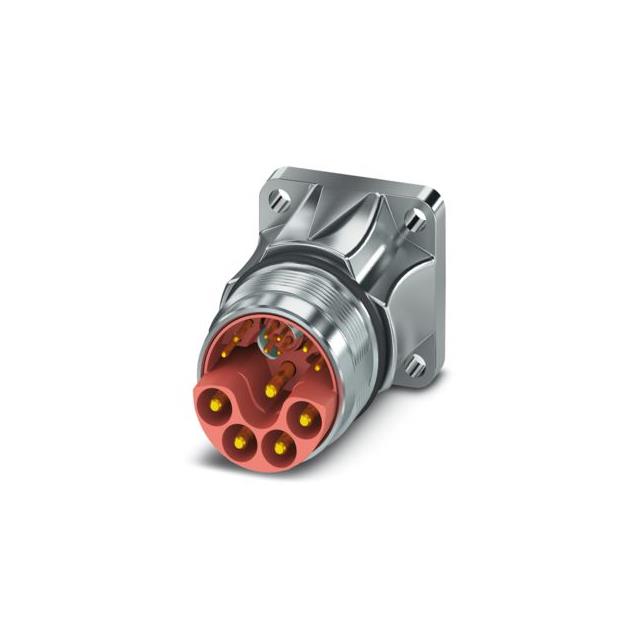

Phoenix Contact part number 1568970, model SH-8EPD68AWA00S, is a front-mounting device connector designed for M23 interfaces. It features a straight design with six positions accommodating four-pin and PE contacts, plus a sixth position for data elements. The rated voltage for data contacts is 50 V AC/DC. Constructed from polyamide (PA), it operates within a temperature range of -20°C to 70°C. The unit provides IP66 protection and supports standard and SPEEDCON interlock connections.

Feature Summary

• Supports standard and SPEEDCON interlock connections
• Front mounting configuration for panel installation
• Integrated data element position alongside power contacts

Applications

• Industrial automation control panels
• Sensor and actuator interface connections
• Machine tool electrical enclosures

Procurement Notes

Verify the specific order code SH-8EPD68AWA00S against project requirements. Confirm that the M23 straight housing and front-mounting style match the mechanical constraints. Ensure compatibility with existing SPEEDCON or standard locking mechanisms in the assembly. Check for required accessories such as protective covers for unused connectors.

Selection Notes

Select this component when a robust M23 solution is needed for front-panel integration. The inclusion of a dedicated data contact position allows for combined signal and power routing in a single housing. Verify that the polyamide material and IP66 rating meet the environmental conditions of the installation site.

Part Context

This connector belongs to the Phoenix Contact SH series, which provides standardized solutions for industrial connectivity. The M23 size offers higher pin counts compared to smaller circular connectors, suitable for complex I/O modules. The design emphasizes secure locking and reliable performance in demanding industrial environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
