Overview

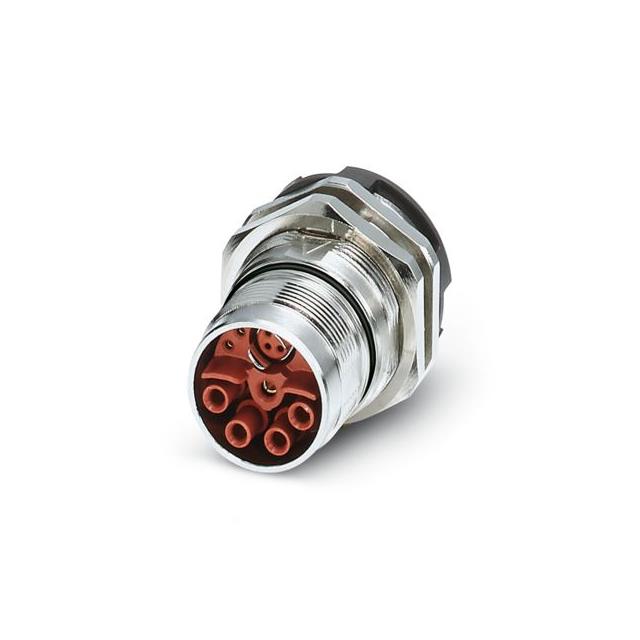

Phoenix Contact SH-8ESD68AH000S is a board-mount circular connector designed for industrial automation applications. It features an M12 push-pull interface with A-coding and supports four positions. The component utilizes a push-lock spring connection mechanism for rapid assembly without tools. The housing is constructed from plastic, while the contact carrier is made of zinc die-cast material with nickel plating to ensure durability. It accommodates external cable diameters ranging from 4 mm to 8 mm.

Feature Summary

• Push-lock spring connection mechanism enables tool-free assembly
• M12 push-pull interface design for secure mating
• A-coding configuration for signal transmission compatibility

Applications

• Industrial automation equipment connections
• Sensor and actuator wiring systems
• Data and signal transmission in control cabinets

Procurement Notes

Verify the specific ordering suffix against the official Phoenix Contact product catalog to confirm mechanical dimensions and coding. Ensure compliance with the online installation instructions available on the manufacturer's website prior to deployment. Confirm that the selected variant matches the required shielding and pin count specifications for the intended circuit.

Selection Notes

Select this component when a robust M12 push-pull solution is required for panel mounting. The spring connection technology facilitates faster installation compared to screw terminals. Verify that the external cable diameter falls within the specified range of 4 mm to 8 mm to ensure proper strain relief and sealing integrity during operation.

Part Context

This part belongs to the Phoenix Contact circular connector portfolio, which provides versatile solutions for transmitting signals, data, and power. The series includes various designs such as straight or angled connectors, molded options, and field-assembled variants. These components are engineered for reliability in industrial environments, supporting both shielded and unshielded configurations across different coding schemes.

Replacement Considerations

Consult the official Phoenix Contact cross-reference documentation for verified substitute part numbers. Do not assume interchangeability based on generic M12 specifications alone. Verify that any alternative component matches the exact push-pull locking mechanism, pin configuration, and mounting style to maintain system integrity.
