1568972

Overview

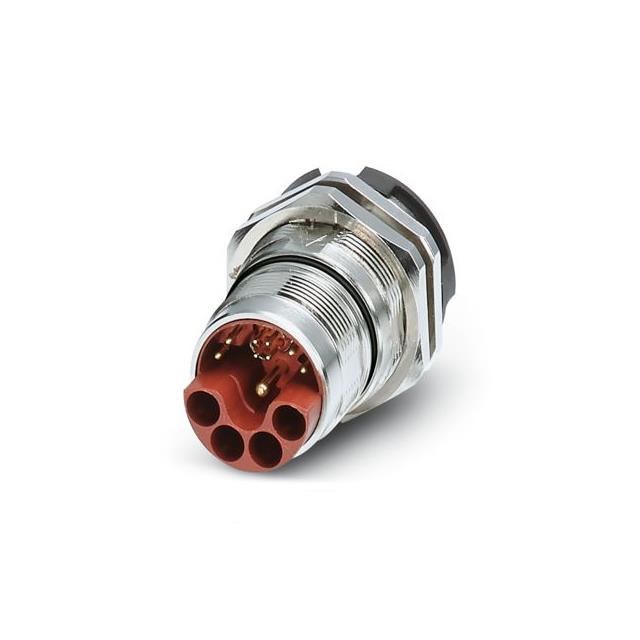

Phoenix Contact 1568972 is an M23 device connector from the SH series, designed for rear panel mounting. It features a straight, shielded socket configuration with 15 positions arranged as 6+4+4+PE. The component utilizes crimp connections and includes a pin switching type. It offers IP67 ingress protection and supports both standard and SPEEDCON locking mechanisms. The unit is rated for 100 insertion/withdrawal cycles and meets UL 94 V0 flammability standards.

Feature Summary

• Straight shielded design for reliable signal integrity in hybrid applications
• Compatible with standard and SPEEDCON interlock systems
• Rear panel mounting structure for secure installation

Applications

• Hybrid industrial connectivity systems
• Equipment requiring IP67 environmental protection
• M23 interface integration with SPEEDCON locking

Procurement Notes

Verify the specific article number 1568972 against the manufacturer's current documentation to ensure compatibility with your system requirements. Confirm that the crimp connection method aligns with your termination tools and cable specifications. Check for any updated flammability ratings or cycle life expectations before finalizing procurement decisions.

Selection Notes

Select this component when a shielded M23 socket with rear mounting is required for hybrid applications. Ensure the 6+4+4+PE pin arrangement matches your circuit design. Verify that the straight orientation fits your enclosure constraints and that the IP67 rating meets your environmental needs.

Part Context

This part belongs to Phoenix Contact's SH series of device connectors. The series is characterized by robust construction suitable for industrial environments. The M23 form factor provides high-density connectivity options while maintaining standard interface compatibility for various automation and control applications.

Replacement Considerations

Consult official Phoenix Contact substitution guides for verified equivalents. Ensure any replacement maintains the M23 size, 15-position layout, and rear mounting capability. Verify that alternative parts support the same shielding and locking mechanisms.
