1568974

Overview

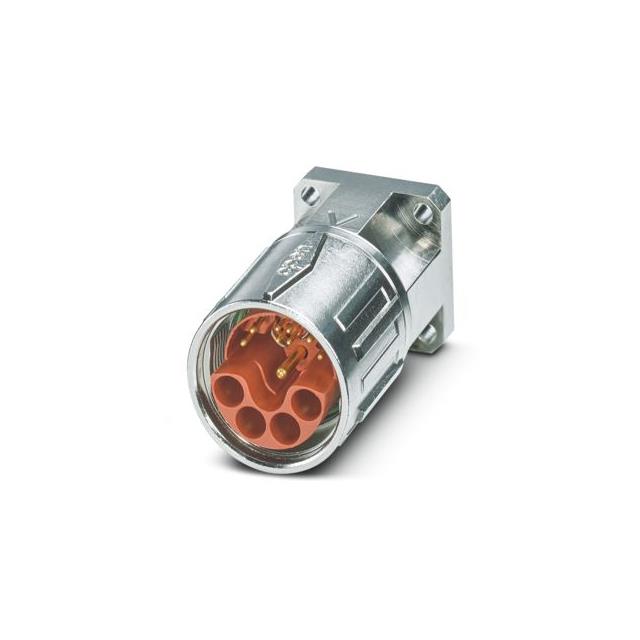

Phoenix Contact part number 1568974, identified as SH-8EPD68AY000S, is an M23 device connector from the SH series. It features a straight design with front mounting capability secured by a knurled nut. The connector utilizes SPEEDCON technology and includes shielding for signal integrity. It provides a total of 15 positions arranged as 6+4+4+PE, incorporating a 6-position data element configuration.

Feature Summary

• Front mounting design with knurled nut
• M23 SPEEDCON contact system
• Shielded construction

Applications

• Industrial automation control panels
• Machine tool wiring connections
• Sensor and actuator interface modules

Procurement Notes

Verify the specific suffix AY000S against project requirements to ensure compatibility with mating connectors. Confirm that the SPEEDCON crimping tools are available for installation. Check datasheet specifications for environmental ratings before deployment in harsh industrial environments.

Selection Notes

Select this component when a shielded M23 connector with front panel mounting is required. The 6+4+4+PE pin arrangement supports mixed signal and power applications. Ensure the enclosure cutout dimensions match the M23 standard for proper fitment.

Part Context

This device connector belongs to Phoenix Contact's SH series, designed for robust industrial connectivity. The M23 form factor allows for high-density cabling solutions. The inclusion of a knurled nut facilitates manual tightening without additional tools during assembly.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Verify pinout compatibility if considering alternative manufacturers.
