1575D-200.000K33DTSK

Overview

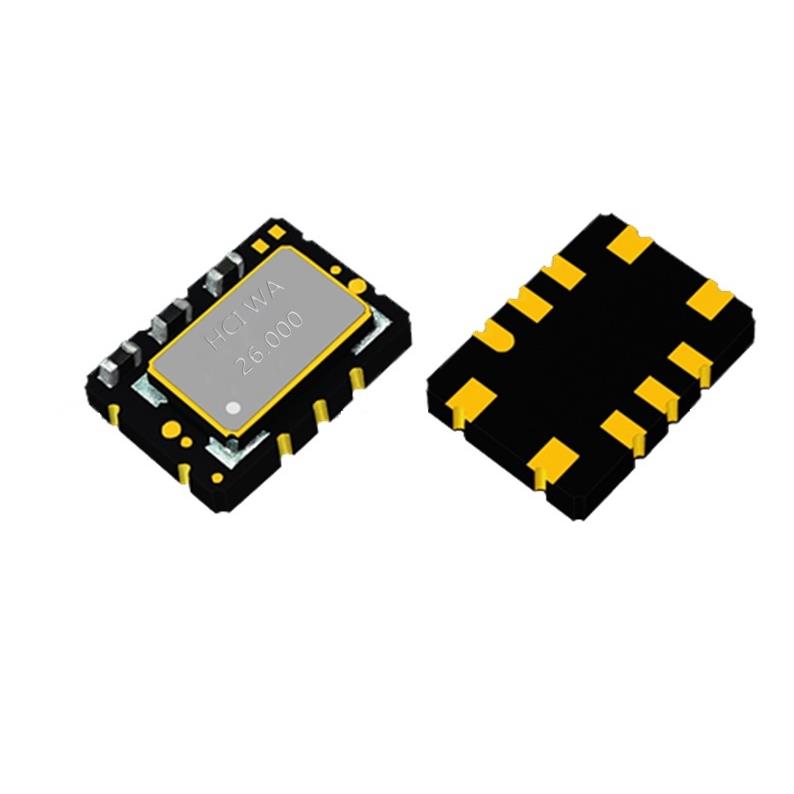

The 1575D-200.000K33DTSK is a standard crystal oscillator (XO) manufactured by Suzhou Hangjing Elec & Tech Co., Ltd. It operates at a nominal frequency of 200 MHz and utilizes LVDS output signaling for high-speed data transmission. The component is designed for surface-mount technology, housed in a 7050 package outline to facilitate automated assembly and compact board layouts. It functions with a supply voltage of 3.3V and maintains a frequency stability tolerance of ±25 ppm. This configuration supports reliable clock signal generation in embedded systems and industrial automation applications requiring precise timing synchronization.

Feature Summary

• Utilizes LVDS output interface for low-voltage differential signaling capabilities
• Designed for surface-mount integration within compact electronic assemblies
• Provides stable clock signals for high-frequency digital system synchronization

Applications

• Embedded system clock generation
• Industrial automation control units
• High-speed data communication interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure compatibility with required packaging formats and tape-and-reel specifications. Confirm that the LVDS output type and 3.3V supply requirements align with the target circuit design before finalizing procurement orders to prevent integration issues.

Selection Notes

Select this component when a 200 MHz clock source with LVDS outputs is required for noise-sensitive applications. Ensure the PCB layout accommodates the 7050 package dimensions and that the power supply rail provides a stable 3.3V input. Consider the ±25 ppm stability specification relative to the system's timing jitter requirements during the design phase.

Part Context

This oscillator belongs to the 1575D series from Suzhou Hangjing Elec & Tech Co., Ltd., which focuses on quartz frequency control components. The company specializes in R&D and production of crystals and oscillators for consumer electronics and automotive sectors. This specific model represents a standard XO variant optimized for modern high-density electronic manufacturing processes.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 200 MHz LVDS oscillators in the 7050 package only after verifying pinout compatibility and electrical parameter equivalence through official manufacturer datasheets.
