1575D8-1000.000K33DTSK

Overview

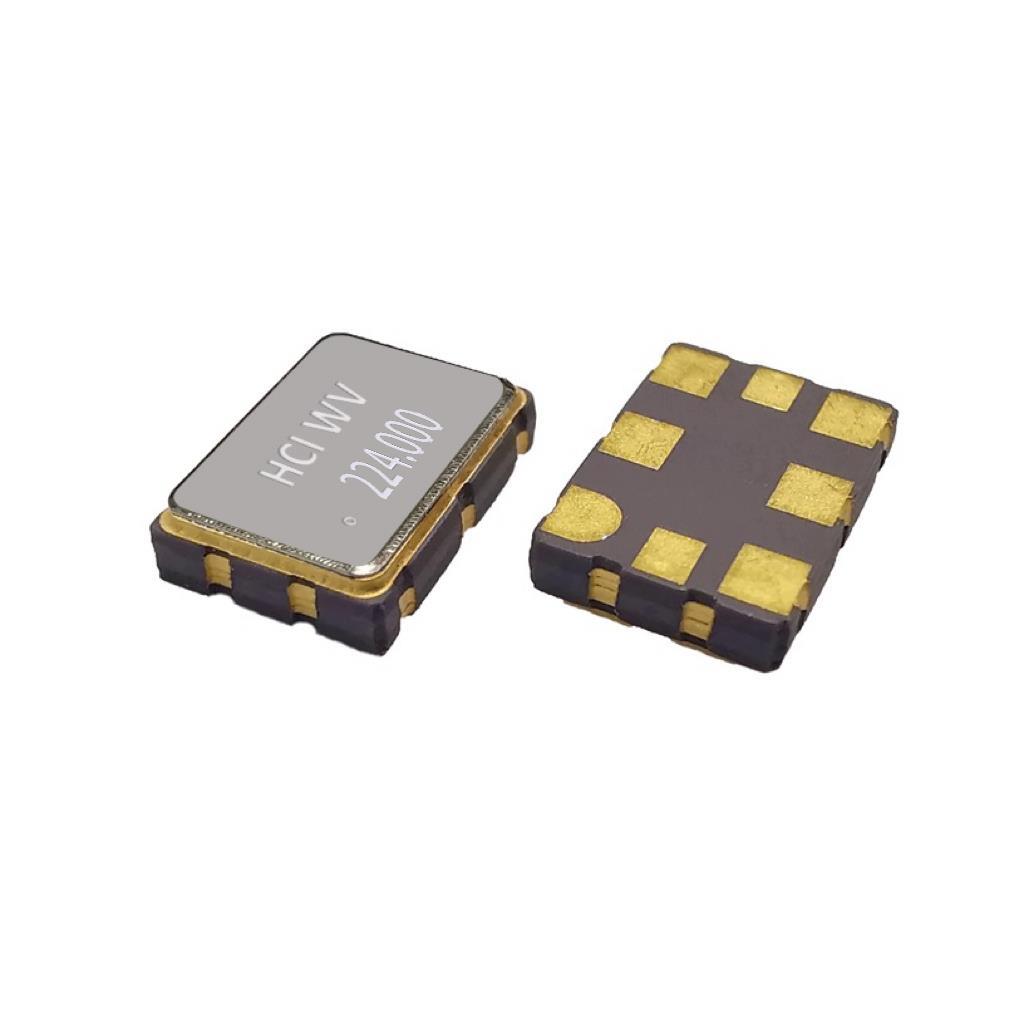

The 1575D8-1000.000K33DTSK is a standard crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 1000 MHz and utilizes LVDS output signaling for high-speed data transmission. The device requires a supply voltage of 3.3V and features an enable/disable control function to manage power consumption. It is housed in an 8-SMD, No Lead package, designed for surface-mount assembly on printed circuit boards. This component is engineered to provide stable clock signals for digital systems requiring precise timing synchronization.

Feature Summary

• Supports LVDS output interface for low-voltage differential signaling applications
• Includes enable and disable functionality for power management control
• Designed for surface-mount technology with a leadless SMD package

Applications

• High-speed digital communication systems
• Data processing equipment requiring precise clock synchronization
• Network infrastructure components

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct electrical characteristics and packaging details. Confirm that the 3.3V supply requirement aligns with your system design. Ensure the LVDS output compatibility matches the receiving logic inputs. Check the operating temperature range specifications for environmental suitability before finalizing procurement orders.

Selection Notes

Select this component when a 1000 MHz clock signal is required with LVDS output capabilities. Consider the 3.3V supply voltage constraint during power budget analysis. Evaluate the 8-SMD no-lead package dimensions for PCB layout compatibility. Verify that the enable/disable feature meets system power management requirements. Ensure the operating temperature range satisfies the intended application environment.

Part Context

Suzhou Hangjing Elec&Tech Co., Ltd specializes in quartz frequency controlling units, including oscillators and crystals. The company focuses on research, development, and production of precision timing components. Their product portfolio addresses needs in computing, communication, and industrial sectors. The 1575D8 series represents their standard oscillator offerings with specific electrical configurations.

FAQ

What is the output type of the 1575D8-1000.000K33DTSK?

The output type is LVDS (Low-Voltage Differential Signaling).

Does the 1575D8-1000.000K33DTSK have power control features?

Yes, it includes an enable and disable function for power management.
