1575H-10.000K33DTSNK

Overview

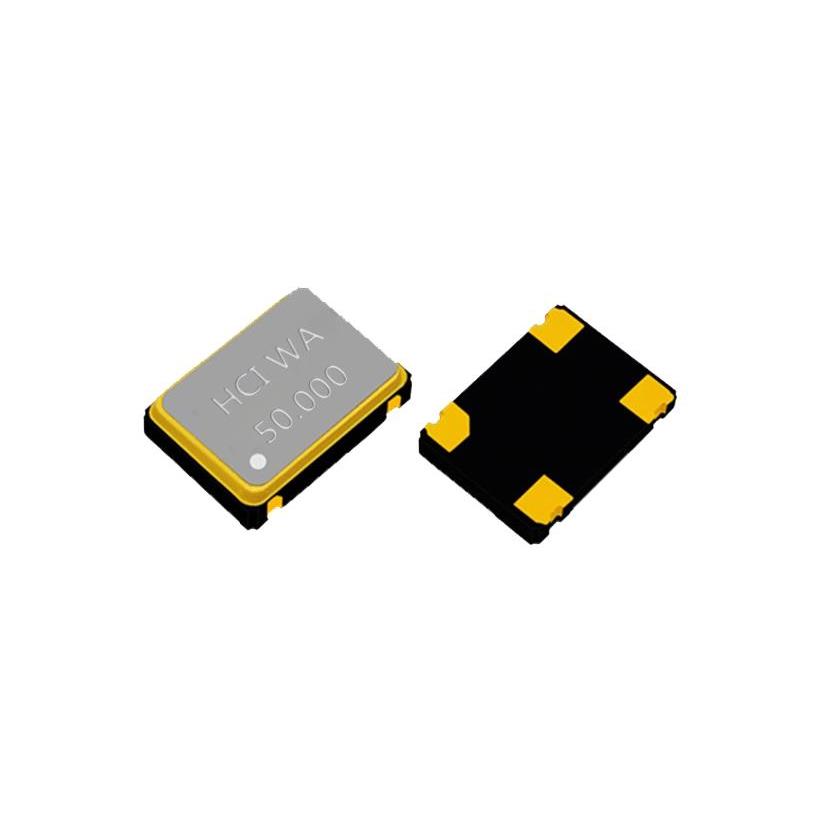

The 1575H-10.000K33DTSNK is a 10 MHz HCMOS crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a supply voltage of 3.3V and features an enable/disable control function. The component utilizes a 4-SMD, no lead package configuration. It is designed for standard clock signal generation applications requiring precise frequency stability.

Feature Summary

• HCMOS output interface for digital logic compatibility
• Enable and disable control functionality for power management
• Compact 4-SMD surface mount package design

Applications

• General purpose clock signal generation in electronic circuits
• Embedded systems requiring stable timing references
• Consumer electronics with space-constrained designs

Procurement Notes

Verify the manufacturer part number against official Suzhou Hangjing documentation to confirm the specific enable/disable feature and HCMOS output characteristics. Ensure the 4-SMD package type matches the target PCB footprint requirements before procurement.

Selection Notes

Select this component when a 10 MHz standard frequency with HCMOS output is required. The 3.3V operating voltage must align with the system power rail. The enable/disable pin allows for active low-power states, which is beneficial for battery-operated or power-sensitive applications.

Part Context

This oscillator belongs to the quartz frequency controlling unit product line of Suzhou Hangjing Elec&Tech Co., Ltd. The company specializes in research and production of such components, offering various stability options suitable for diverse electronic applications.

Replacement Considerations

The 1575H-10.000K33DTSK is listed as a related variant from the same manufacturer. Verify if the 'K' suffix denotes identical electrical specifications and pinout compatibility before considering it as a direct substitute.
