Product Detailed Parameters
- Description：XTAL OSC XO 12.288MHZ HCMOS SMD
- Series：1575H
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：12.288 MHz
- Function：Enable/Disable
- Output：HCMOS
- Voltage - Supply：3.3V
- Frequency Stability：±50ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：10mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max)：0.063" (1.60mm)
- Supplier Device Package：-
Download product information
Overview

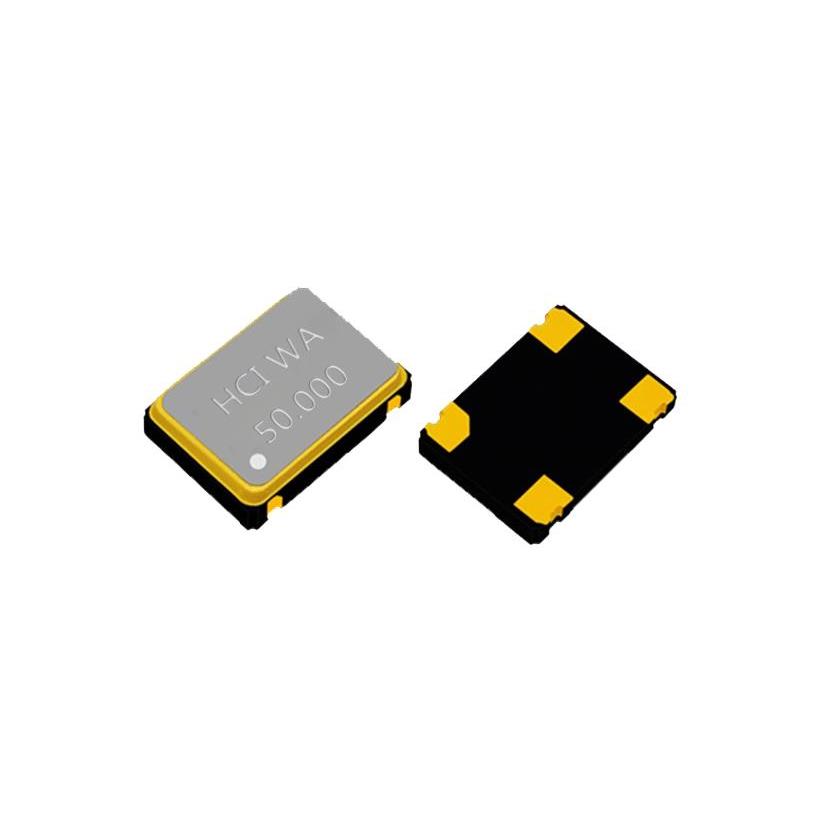

The 1575H-12.288G33DTSNK is a standard HCMOS crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It operates at a frequency of 12.288 MHz and supports supply voltages ranging from 1.8V to 3.3V. The component features an enable/disable control function for power management. It is housed in a compact 4-SMD, No Lead package, designed for surface-mount applications requiring precise timing signals.
Feature Summary
- Standard HCMOS output signal generation
- Integrated enable and disable control functionality
- Compact 4-SMD no-lead surface mount package
Applications
- General purpose digital timing circuits
- Embedded systems requiring clock synchronization
- Consumer electronics with space constraints
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to ensure correct voltage range and package configuration. Confirm that the enable/disable pinout matches the target design requirements. Cross-reference the part number with the latest datasheet to validate operating temperature ranges and stability specifications before finalizing procurement orders.
Selection Notes
Select this component when a standard HCMOS output is required for 12.288 MHz applications. Ensure the system voltage aligns with the 1.8V to 3.3V operational range. Consider the enable/disable feature if power efficiency during idle states is a design priority. Verify footprint compatibility with the 4-SMD no-lead package dimensions.
Part Context
This oscillator belongs to the 1575H series from Suzhou Hangjing, which focuses on quartz frequency control components. The series provides solutions for computing, communication, and automotive sectors. Hangjing Electronics specializes in research and development of quartz crystals and oscillators, emphasizing high reliability and small form factors for modern electronic devices.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided source material. Direct replacement requires matching electrical parameters and mechanical footprint. Consult the manufacturer for cross-reference recommendations or equivalent products within the same product line.
