Product Detailed Parameters
- Description：XTAL OSC XO 48MHz 1.8V HCMOS SM
- Series：1575H
- Mfr：Suzhou Hangjing Elec&Tech Co.,Ltd
- Package：Tape & Reel (TR),Strip
- Base Resonator：Crystal
- Type：XO (Standard)
- Frequency：48 MHz
- Function：Enable/Disable
- Output：HCMOS
- Voltage - Supply：1.8V
- Frequency Stability：±25ppm
- Absolute Pull Range (APR)：-
- Operating Temperature：-40°C ~ 85°C
- Spread Spectrum Bandwidth：-
- Current - Supply (Max)：30mA
- Ratings：-
- Mounting Type：Surface Mount
- Package / Case：4-SMD, No Lead
- Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
- Height - Seated (Max)：0.071" (1.80mm)
- Supplier Device Package：-
Download product information
Overview

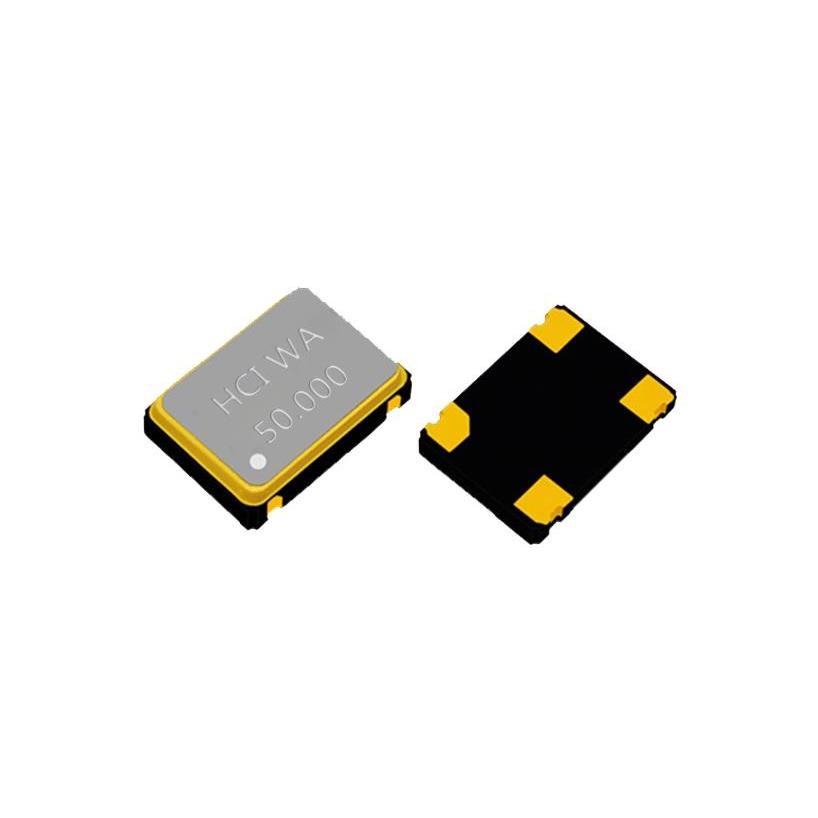

The 1575H-48.000K18DTST-CNK is a surface-mount crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a nominal frequency of 48 MHz and utilizes HCMOS output logic levels. The device is designed for operation within a supply voltage range of 1.8V to 3.3V, ensuring compatibility with low-voltage digital circuits. It features a standard 1575H package footprint, suitable for automated pick-and-place assembly processes in compact electronic designs.
Feature Summary
- HCMOS output interface for direct logic integration
- Wide supply voltage support from 1.8V to 3.3V
- Surface-mount construction for automated assembly
Applications
- Consumer electronics requiring precise timing
- Communication modules operating at 48 MHz
- Embedded systems utilizing low-voltage power supplies
Procurement Notes
Verify the complete part number including the suffix against official manufacturer documentation to ensure correct voltage and packaging specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Cross-reference the specific ordering code with authorized distributors to validate authenticity and current availability status.
Selection Notes
Select this component when a 48 MHz clock source is required for low-voltage applications. Ensure the system design accommodates the 1.8V to 3.3V operating range. Verify that the HCMOS output swing matches the input thresholds of the receiving logic circuitry. Consider the physical dimensions of the 1575H package during PCB layout planning.
Part Context
This oscillator belongs to the 1575H series produced by Suzhou Hangjing Elec&Tech Co., Ltd. The company specializes in quartz frequency control units, including crystals, oscillators, and filters. This series provides stable frequency generation solutions for various electronic applications, supporting both standard and specialized voltage requirements.
Replacement Considerations
Consult official manufacturer substitution lists for verified equivalent parts. Generic replacements may differ in electrical characteristics or package dimensions. Validate any alternative component against the original datasheet parameters before implementation.
