1575P-80.000K33DTSTK

Overview

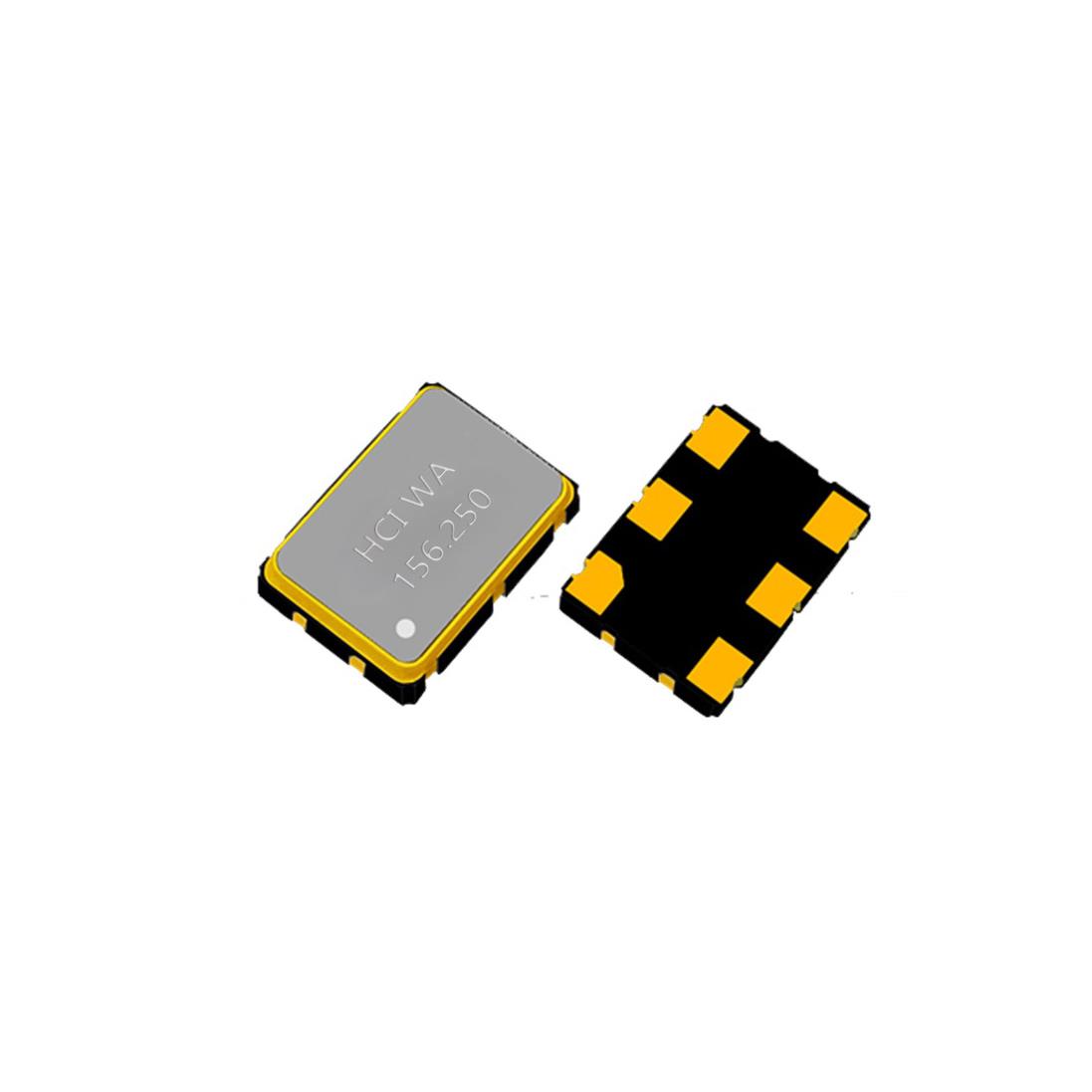

The 1575P-80.000K33DTSTK is a standard crystal oscillator (XO) manufactured by Suzhou Hangjing Elec&Tech Co., Ltd. It operates at a frequency of 80 MHz and utilizes LVPECL output levels. The device functions with a supply voltage of 3.3V and includes an enable/disable control feature for power management. It is housed in a compact 6-SMD, no lead package configuration, designed for surface-mount applications requiring precise timing signals.

Feature Summary

• Supports LVPECL output interface for high-speed digital applications
• Includes enable and disable functionality for power control
• Operates on a single 3.3V power supply
• Utilizes a compact 6-SMD no-lead surface mount package

Applications

• High-speed data communication systems
• Network infrastructure equipment
• Computing and server platforms
• Industrial control devices

Procurement Notes

Verify the specific part number suffix to ensure compatibility with required output levels and packaging specifications. Confirm that the manufacturer documentation supports the intended operating temperature range and load conditions for your specific circuit design before finalizing procurement orders.

Selection Notes

Select this component when LVPECL signaling is required for noise immunity and speed. Ensure the system design accommodates the 3.3V supply requirement and provides necessary thermal dissipation for the SMD package. Validate that the 80 MHz frequency aligns precisely with system clock requirements.

Part Context

This model belongs to the 1575P series of standard oscillators from Suzhou Hangjing. The series focuses on providing reliable quartz-based timing solutions for electronic applications. The company specializes in research and production of quartz frequency control units, establishing product lines for various oscillator types including XO, TCXO, and VCXO.

Replacement Considerations

Check for direct substitutes within the same series offering identical LVPECL outputs and 3.3V operation. Verify pinout compatibility and package dimensions to ensure mechanical fit without redesigning the PCB layout.
