1577209

Overview

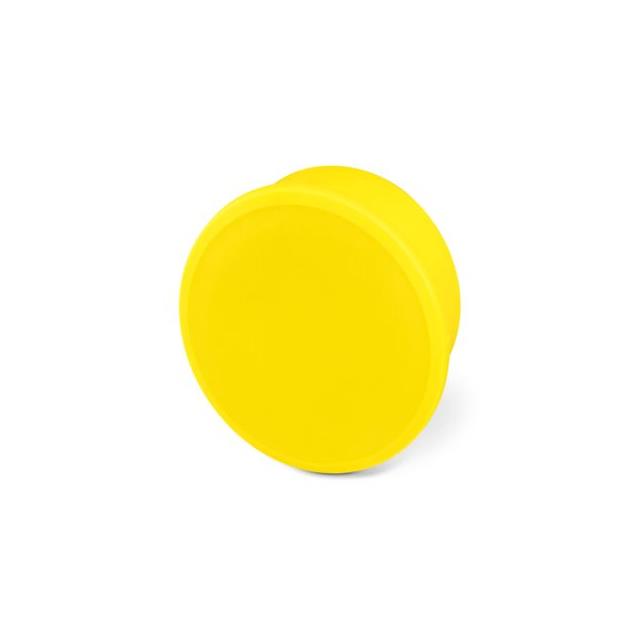

Phoenix Contact part number 1577209 is a plastic protective cap designated as PROT-M27-SG-IT-IP20. It belongs to the HC series and is designed for shell size M27. The component serves as a protective cover for circular connectors, featuring an IP20 ingress protection rating. The material composition is specified as plastic, distinguishing it from metal housing alternatives in the same series.

Feature Summary

• Provides physical protection for connector interfaces
• Designed specifically for M27 shell sizes
• Constructed from durable plastic material

Applications

• Protection of unused circular connector ports
• Maintenance of connector cleanliness during storage
• Industrial equipment interface safeguarding

Procurement Notes

Verify that the specific application requires an IP20 rated plastic cap rather than higher ingress protection ratings. Confirm compatibility with the M27 shell size before procurement. Ensure the ordering suffix matches the required material specification. Cross-reference the manufacturer part number 1577209 with official Phoenix Contact documentation to confirm current product status and availability details.

Selection Notes

Select this component when a non-metallic protective solution is required for M27 circular connectors. The IP20 rating indicates protection against solid objects larger than 12.5mm but no water resistance. Consider material compatibility with the operating environment. Verify that the plastic construction meets any specific chemical or thermal requirements of the installation site compared to aluminum options.

Part Context

This protective cap is part of the broader Phoenix Contact circular connector accessory portfolio. It complements heavy-duty connector housings and inserts. The HC series designation links it to standard industrial connectivity solutions. It functions as a complementary component rather than a standalone electrical interface device.

Replacement Considerations

Direct substitutes include other Phoenix Contact protective caps for M27 shells. Verify that alternative parts maintain the same IP20 rating and plastic material composition. Check for identical mounting dimensions and thread specifications to ensure mechanical compatibility.
