1582575

Overview

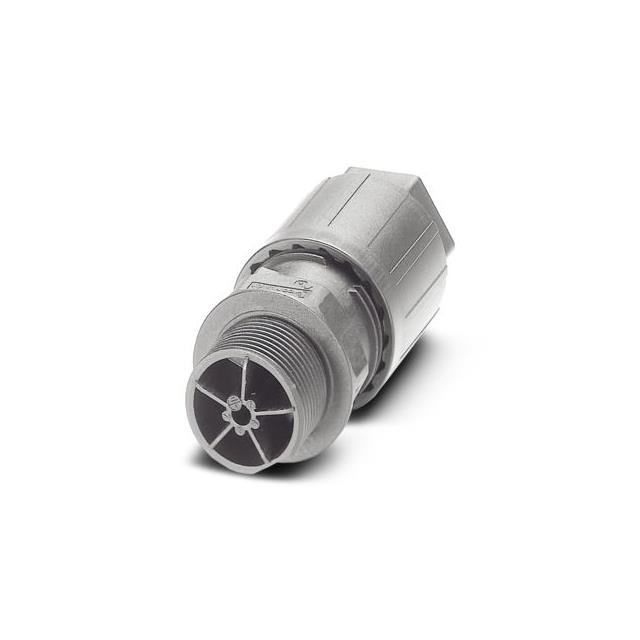

Phoenix Contact part number 1582575 is a QPD series panel feed-through circular connector. It features a QUICKON connection system with 4+PE positions and supports wire cross-sections from 1 mm² to 2.5 mm². The unit utilizes an M25 male connector interface and provides IP66, IP68, and IP69K ingress protection ratings. Rated voltage reaches up to 1250 V under specific conditions, with a current rating of 20 A. The housing is grey and includes a QUICKON nut for secure mounting.

Feature Summary

• QUICKON push-in connection technology for tool-free wiring
• High ingress protection suitable for harsh industrial environments
• Robust metal housing construction for mechanical stability

Applications

• Industrial automation control panels
• Process instrumentation connections
• Harsh environment sensor integration

Procurement Notes

Verify the exact suffix against the manufacturer datasheet to ensure correct contact configuration and cable gland specifications. Confirm that the QUICKON nut type matches existing installation requirements. Check for any regional availability restrictions or lifecycle status updates before finalizing procurement plans.

Selection Notes

Select this component when high-density wiring in compact enclosures is required. The QUICKON system offers faster assembly compared to screw terminals. Ensure the operating voltage does not exceed the rated limits for the specific insulation sleeve configuration used.

Part Context

This component belongs to the Phoenix Contact QPD series of circular connectors. These are designed for use in industrial automation where reliable signal and power transmission is critical. The series emphasizes modular design and quick installation capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
