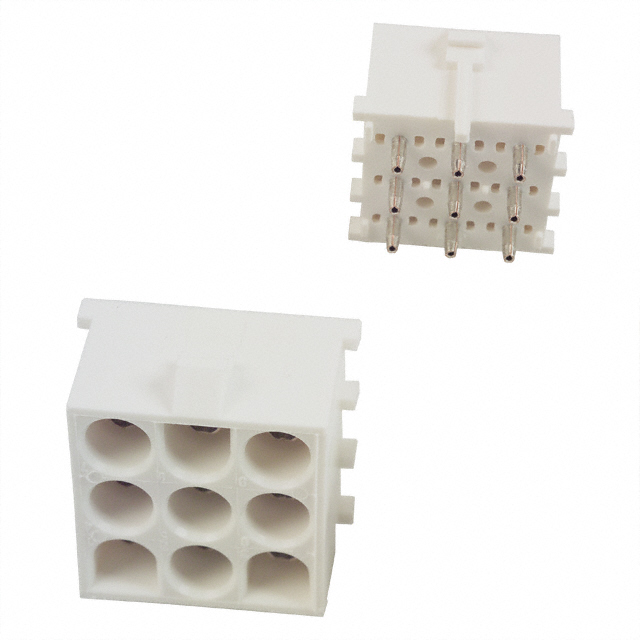

1586214-1

1586214-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HDR 9POS 0.25 TIN PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 1586214-1

• Description：CONN HDR 9POS 0.25 TIN PCB
• Series：Universal MATE-N-LOK
• Mfr：TE Connectivity AMP Connectors
• Package：Bag
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Cable/Wire
• Number of Positions：9
• Number of Positions Loaded：All
• Pitch - Mating：0.250" (6.35mm)
• Number of Rows：3
• Row Spacing - Mating：0.250" (6.35mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：-
• Insulation Height：0.580" (14.73mm)
• Contact Length - Post：0.155" (3.94mm)
• Operating Temperature：-
• Material Flammability Rating：UL94 V-2
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 1586214-1
