1587068

Overview

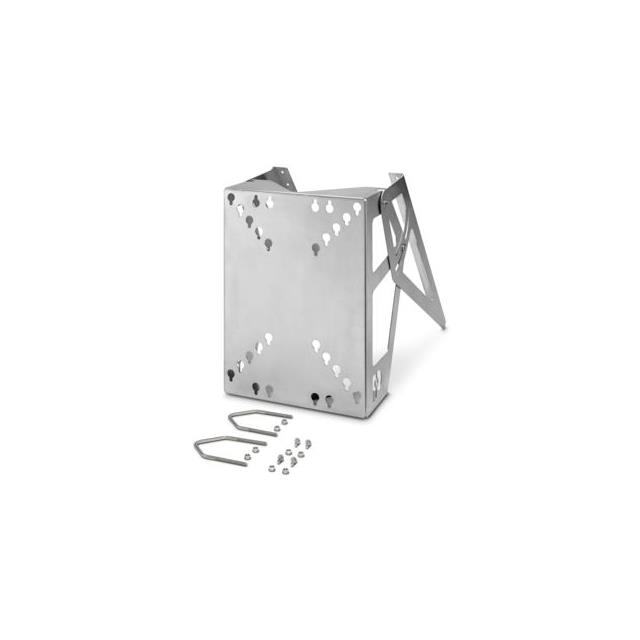

Phoenix Contact part number 1587068 is a POS POLEFIX M 108 VA base support designed for the Pico Off-Grid system. It provides mast mounting capability with compatibility for diameters ranging from 48 mm to 108 mm. The unit supports POS-HP enclosures sized between 204 x 251 mm and 410 x 455 mm, as well as POS-PV-Panel models 75, 110, and 190. Constructed from silver-colored stainless steel, it ensures durability for outdoor applications. Dimensions vary by angle: 370 x 729.5 x 380.9 mm at 30 degrees and 370 x 567.4 x 817.6 mm at 80 degrees.

Feature Summary

• Provides secure mast mounting for off-grid power systems
• Compatible with specific POS-HP enclosure sizes and PV panels
• Constructed from stainless steel for outdoor durability

Applications

• Mounting Pico Off-Grid system components on masts
• Supporting POS-HP enclosures in outdoor environments
• Installing POS-PV-Panel units 75, 110, and 190

Procurement Notes

Verify that the target installation mast diameter falls within the specified 48 mm to 108 mm range before procurement. Confirm compatibility with the specific POS-HP or POS-PV-Panel model intended for integration. Review the official documentation available in the download area for detailed technical drawings and precise dimensional requirements to ensure proper fitment.

Selection Notes

Select this component when utilizing the Pico Off-Grid series with compatible POS housings. Ensure the mounting structure accommodates the angular dimensions provided. Verify material requirements against environmental conditions, noting the stainless steel construction. Cross-reference the specific panel or box model numbers to confirm mechanical compatibility.

Part Context

This item belongs to the POS series of mounting hardware manufactured by Phoenix Contact. It serves as a foundational support element for the Pico Off-Grid energy storage ecosystem. The product is categorized under outdoor application enclosures, providing structural integrity for solar and battery systems mounted on vertical poles.

Replacement Considerations

No public substitute part numbers are documented for this specific base support configuration.

FAQ

What is the maximum mast diameter supported?

The support is compatible with masts having diameters ranging from 48 mm to 108 mm.

Is this support suitable for outdoor use?

Yes, it is designed for outdoor applications and constructed from stainless steel.
