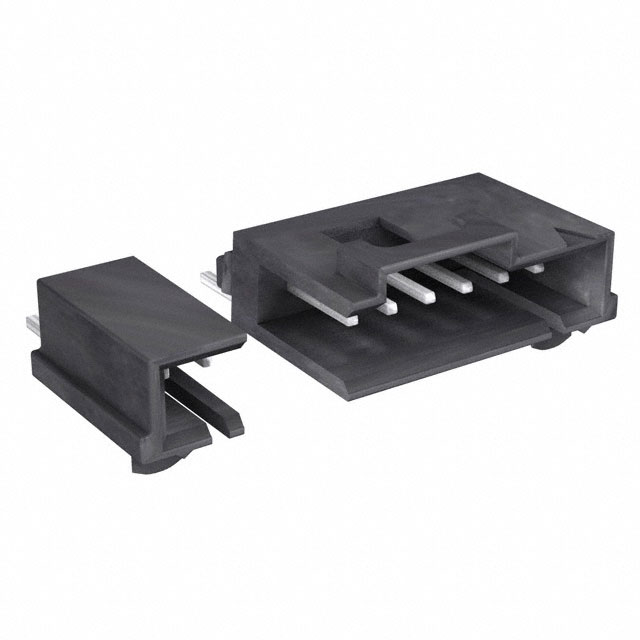

15916189

15916189 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER SMD R/A 18POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 15916189

• Description：CONN HEADER SMD R/A 18POS 2.54MM
• Series：SL 70634
• Mfr：Molex
• Package：Tape & Reel (TR)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：18
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Length - Mating：0.240" (6.10mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.215" (5.45mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：74.8µin (1.90µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Polyester, Glass Filled
• Features：Board Guide
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 15916189
