1596876

Overview

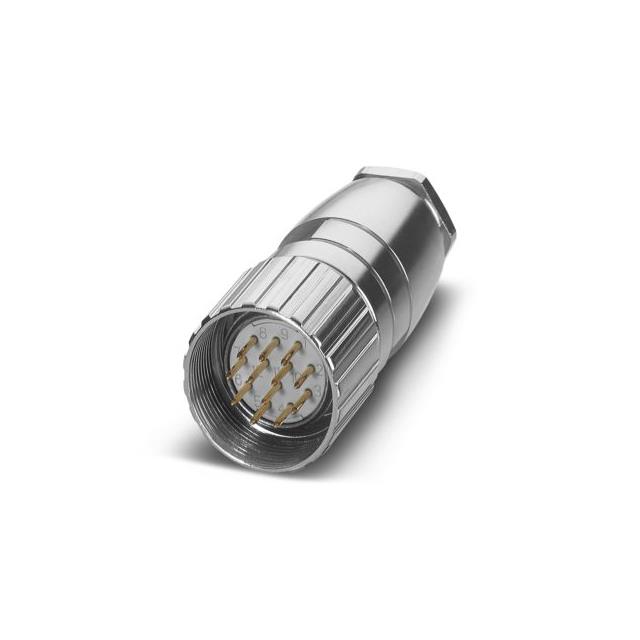

The Phoenix Contact 1596876 is a straight cable connector from the RC-12P series, designed for M23 metric interfaces. It features a screw locking mechanism and utilizes a Pg11 thread type for secure cable attachment. The component contains 12 positions with pin-type contacts. This specific variant is unshielded and intended for screw mounting applications.

Feature Summary

• Straight design configuration for direct cable entry
• M23 metric interface with screw locking mechanism
• Pg11 connection thread for cable strain relief
• 12-position pin contact arrangement

Applications

• Industrial automation signal transmission
• Sensor and actuator wiring connections
• Control cabinet cable termination
• Machine tool electrical assembly

Procurement Notes

Verify the exact part number 1596876 against official Phoenix Contact documentation to confirm the Pg11 thread specification and unshielded status. Ensure compatibility with existing M23 mating connectors and panel cutout dimensions before procurement. Cross-reference the 12-pin configuration with system requirements.

Selection Notes

Select this model when an unshielded M23 straight connector with Pg11 threading is required. Confirm that the application does not demand electromagnetic shielding, as this unit lacks it. Verify that the screw locking mechanism meets the vibration resistance needs of the installation environment.

Part Context

This component belongs to the Phoenix Contact RC-12P series of circular metric connectors. These connectors are engineered for robust industrial environments, providing reliable connectivity for control and signaling applications. The series offers various configurations in terms of position count and locking mechanisms.

Replacement Considerations

Direct substitutes include other Phoenix Contact M23 straight connectors with identical 12-pin layouts and Pg11 threads, such as variants within the same RC-12P family. Ensure any replacement maintains the unshielded characteristic and screw locking method to preserve mechanical fit.
