1597737

Overview

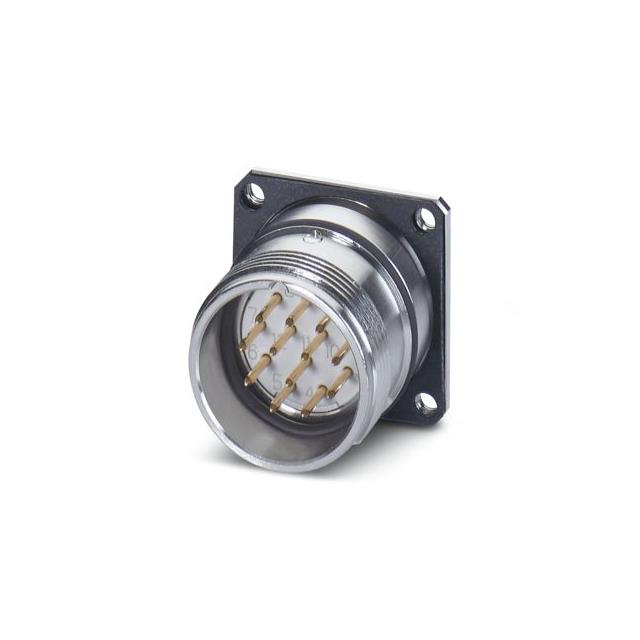

Phoenix Contact part number 1597737 is a circular metric connector belonging to the RC series, specifically designated as model RC-12P1NV25013. This component functions as a male pin contact housing designed for industrial interconnection applications requiring robust signal or power transmission. The unit features an M23 threaded size interface and utilizes a crimp termination method for secure wire attachment. It is classified under circular connectors and carries the Pluscon Circular trademark. The product complies with RoHS standards and REACH SVHC regulations, ensuring suitability for environments with strict material safety requirements.

Feature Summary

• Features an M23 threaded size interface for standardized mounting compatibility
• Utilizes crimp termination type for reliable electrical connection integrity
• Designed with male pin contacts within the RC series architecture

Applications

• Industrial automation control panels
• Process instrumentation connections
• Sensor and actuator interfacing systems

Procurement Notes

Verify the specific ordering suffix NV25013 against project schematics to ensure correct cable gland or mating interface compatibility. Confirm that the crimp tooling matches the contact specifications defined in the official Phoenix Contact documentation. Check current production cycle times as availability may vary based on manufacturing schedules. Ensure compliance with REACH SVHC declarations required for your facility's environmental standards before finalizing procurement orders.

Selection Notes

Select this component when an M23 metric circular connector interface is required for male pin applications. The crimp termination style necessitates compatible wiring preparation tools distinct from solder or screw methods. Consider the RC series characteristics for environmental sealing needs relative to the specific application enclosure. Verify that the housing material and contact configuration align with the system's voltage and current ratings specified in the technical datasheet.

Part Context

This connector belongs to the Phoenix Contact Pluscon Circular line, which provides modular solutions for industrial connectivity. The RC series offers various configurations for different pin counts and termination styles. Part 1597737 represents a specific variant within this broader ecosystem, focusing on the M23 form factor. It complements other heavy-duty and circular connector products offered by the manufacturer for complete system integration.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source data.
