1598517

Overview

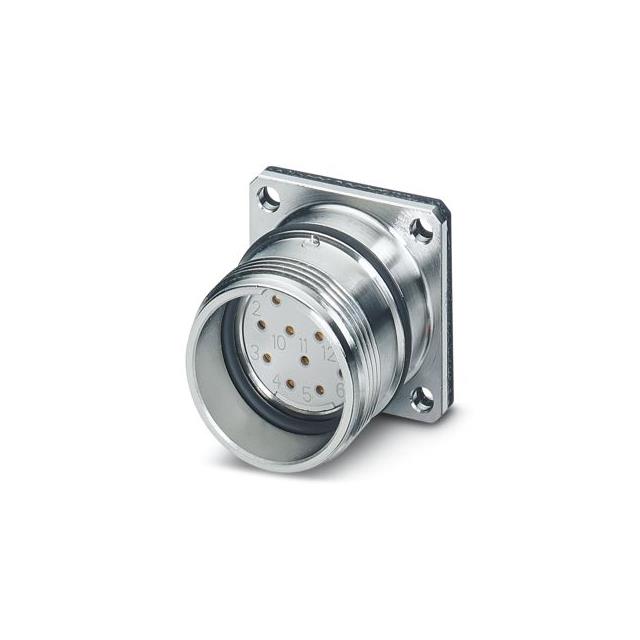

The Phoenix Contact model 1598517 is a COMBICON MC 1,5 plug component designed for signal applications. It features a straight configuration with screw locking and utilizes crimp connection technology for contact termination. The unit provides 12 positions with standard direction of rotation and includes shielding capabilities. It is constructed from PA 6.6 insulating body material and complies with RoHS II standards without exemption 6c, ensuring lead-free composition.

Feature Summary

• Straight cable connector design with integrated shielding for signal transmission
• Screw locking mechanism ensures secure attachment to mating interfaces
• Crimp connection type supports reliable termination of signal contacts
• Lead-free construction compliant with RoHS II environmental directives

Applications

• Industrial signal wiring connections
• Control cabinet interconnects
• Automation system cabling
• Sensor and actuator interface links

Procurement Notes

Verify the specific ordering suffix and packaging configuration against the official Phoenix Contact datasheet before purchase. Confirm that the required crimp contacts are ordered separately as they are not included with this housing unit. Ensure compatibility with existing M23 connector systems in your application setup.

Selection Notes

Select this component when a shielded, straight M23 cable connector with screw locking is required for signal applications. Verify that the crimp contact method aligns with your assembly tools and wire specifications. Consider the lead-free compliance if environmental regulations apply to your project requirements.

Part Context

This part belongs to the Phoenix Contact CA series of circular connectors. It is specifically an M23 cable-side connector designed for robust industrial environments. The product line emphasizes high-density signal transmission with reliable mechanical locking and shielding integrity for sensitive electronic signals.

Replacement Considerations

Phoenix Contact indicates this product is being discontinued. The officially confirmed alternative part number is 1629210. Users must transition to this replacement for new projects and consult sales representatives for further guidance on the discontinuation process.
