1599815

Overview

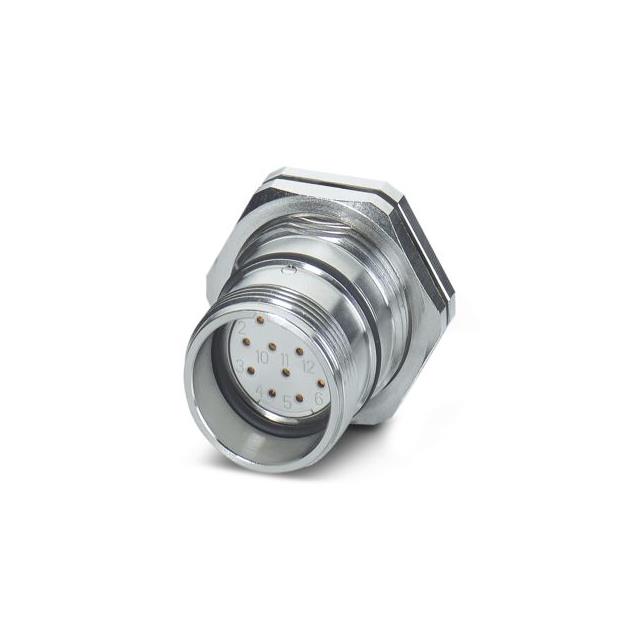

Phoenix Contact part number 1599815 is an M23 device connector belonging to the RC series. It features a rear mounting design with a shielded construction and screw locking mechanism. The connector has 12 positions and utilizes a counter-direction rotation interface. Technical specifications include a contact switching type of socket, signal application, and connection profile of 12. The contacts are made of CuZn with Ni/Au surface plating. The component supports soldering connections and has a mating cycle rating of 50 cycles.

Feature Summary

• Rear mounting design for device integration
• Shielded construction for signal integrity
• Screw locking mechanism for secure attachment

Applications

• Industrial signal transmission systems
• Device connector rear mounting applications
• M23 circular metric connector assemblies

Procurement Notes

Verify current availability status as this product is in the process of being discontinued and must no longer be considered for new projects. Confirm specific return policies as returns may not be accepted for this item. Consult official Phoenix Contact sales representatives for alternative solutions or final procurement validation before ordering.

Selection Notes

Select this component only for retrofitting existing designs where the M23 RC series rear-mount form factor is required. Ensure compatibility with 12-position counter-direction interfaces. Due to discontinuation status, evaluate long-term supply chain stability and consider equivalent active series for future-proofing requirements.

Part Context

This component belongs to the Phoenix Contact RC series of M23 device connectors. It is designed for industrial environments requiring robust signal connectivity. The rear mounting style allows for panel or wall installation. The shielding and screw lock provide mechanical and electrical protection suitable for demanding operational conditions.

Replacement Considerations

The manufacturer indicates this product is being discontinued. No public confirmed substitute part numbers are provided in the source data. Contact Phoenix Contact sales representatives directly for recommended replacements or updated product line information.
