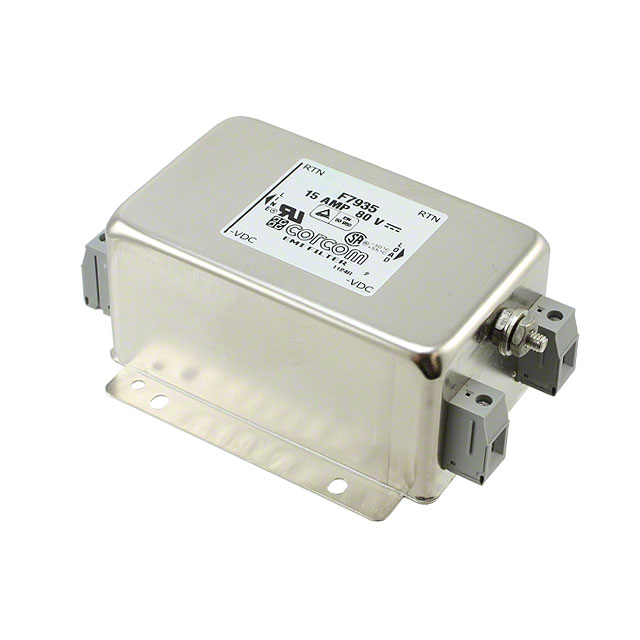

15DCF10

$89.34

Description：LINE FILTER 80VDC 15A CHASS MNT
Series：DC
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:5cebe85cf700 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 80VDC 15A CHASS MNT
Series：DC
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：DC
Configuration：Single Stage
Voltage - Rated DC：80V
Voltage - Rated AC：-
Current：15 A
Frequency - Operating：-
Applications：General Purpose
Approval Agency：CSA, TUV, UR
Operating Temperature：-10°C ~ 55°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (8-32)
Inductance：451µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

15DCF10

Overview

The TE Connectivity Corcom Filters 15DCF10 is a single-phase RFI power line filter designed for DC applications. It features a rated current of 15 A and a voltage rating of 80 VDC. The unit operates at frequencies of 50 Hz or 60 Hz and utilizes a terminal block flange mount installation style with screw termination.

Feature Summary

Provides RFI suppression for DC power lines
Features terminal block flange mount design for secure connection

Applications

DC power line filtering
General industrial equipment requiring clean DC supply

Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and leakage current specifications, as these are critical for compliance. Ensure the mounting hardware matches the flange dimensions. Confirm that the 80VDC rating aligns with the system's maximum operating voltage under all conditions.

Selection Notes

Select this component when a single-phase DC filter with a 15A capacity and 80VDC rating is required. The terminal block flange mount offers a robust mechanical solution for chassis integration. Consider the physical dimensions and thermal requirements relative to the enclosure space available.

Part Context

This component belongs to the Corcom RFI Power Line Filter series, which specializes in electromagnetic interference suppression for various power environments. The 15DCF10 specifically addresses DC application needs within this portfolio, offering a standardized form factor for industrial integration.

Replacement Considerations

Consult official substitution guides for equivalent performance. Verify that any alternative part matches the 15A current, 80VDC voltage, and terminal block flange mount configuration.
