15EHT6

Overview

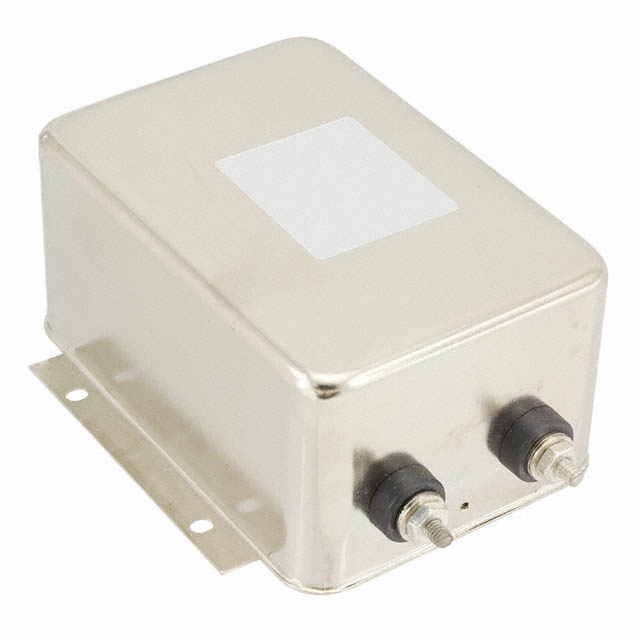

The TE Connectivity Corcom Filters 15EHT6 is a high-performance RFI power line filter designed for chassis mounting. It features a 15A current rating and operates at a maximum rated voltage of 250 VAC at 50/60Hz. The component utilizes threaded bolt terminals (style 6) for secure installation, ensuring robust mechanical stability in demanding environments.

Feature Summary

• Provides significant attenuation of RFI noise specifically optimized for sensitive medical equipment applications
• Utilizes threaded bolt terminal style for secure and reliable mechanical mounting on chassis panels

Applications

• Medical equipment requiring strict RFI noise suppression
• Chassis-mounted power entry modules needing secure bolted connections
• Industrial systems operating at 250 VAC with 15A load requirements

Procurement Notes

Verify the specific terminal style and mounting configuration against your chassis design before ordering. Confirm that the 15A rating and 250 VAC specification align with your system's electrical requirements. Ensure compatibility with the intended frequency range of 50/60Hz for proper filter performance.

Selection Notes

Select this model when high-level RFI attenuation is critical for medical or sensitive electronic applications. The threaded bolt terminals offer superior mechanical security compared to quick-connect options, making it suitable for vibration-prone environments. Ensure the chassis panel thickness accommodates the mounting hardware specifications.

Part Context

This component belongs to the Corcom Filters series, known for providing EMI/RFI filtering solutions in power entry modules. The 15EHT6 variant is specifically engineered for medical-grade applications where noise suppression is paramount. It represents a specialized solution within the broader AC power connector landscape.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
