15ET1

Overview

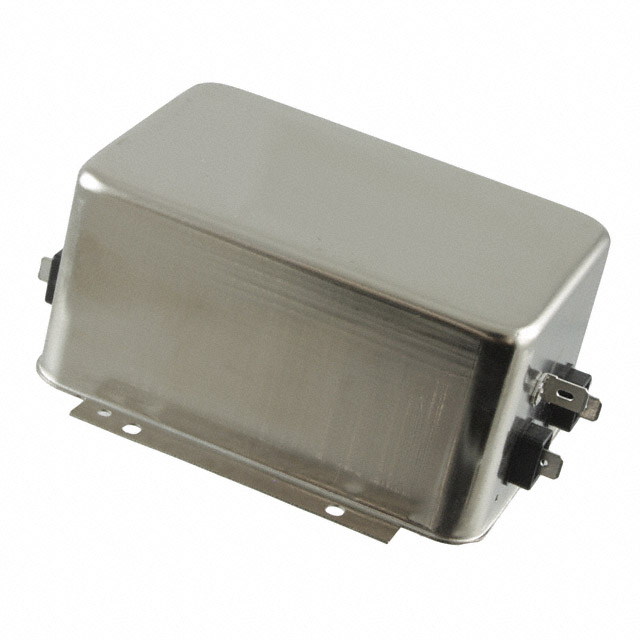

The TE Connectivity Corcom Filters 15ET1 is a single-phase RFI power line filter designed for switching power supplies. It features a flanged panel mount style with fast-on terminals rated at 0.250 inches (6.3mm) for both input and output connections. The component has a current rating of 15A and operates within a voltage range of 250V AC at 50Hz or 60Hz frequencies. It provides superior common-mode and differential-mode attenuation to ensure effective noise suppression in demanding electronic environments.

Feature Summary

• Provides superior common-mode and differential-mode attenuation for effective noise suppression
• Features an extended metal flange around the socket for improved high-frequency EMI shielding
• Includes a larger contact area for enhanced panel grounding
• Designed specifically for use with switching power supplies

Applications

• Switching power supplies
• Work stations
• Base stations
• Server applications

Procurement Notes

Verify the specific terminal configuration matches the required 0.250-inch fast-on specification. Confirm that the flanged mounting style aligns with the chassis design requirements. Ensure the 15A current rating and 250V AC voltage limits are sufficient for the target application's electrical parameters before finalizing procurement decisions.

Selection Notes

Select this model when high-performance RFI filtering is required for single-phase AC circuits. It is suitable for equipment demanding higher current handling capabilities, such as computing systems. Consider the physical dimensions of the flanged housing and the specific terminal type when integrating into existing power entry modules or custom assemblies.

Part Context

This component belongs to the Corcom T series of single-phase filters manufactured by TE Connectivity. It is engineered to meet the increasing demands for noise reduction in modern electronic equipment. The design focuses on providing robust electromagnetic interference protection while maintaining reliable electrical connectivity in standard commercial and industrial power distribution setups.

Replacement Considerations

Public confirmed substitute part numbers: 6609046-9.
