15ET6

Overview

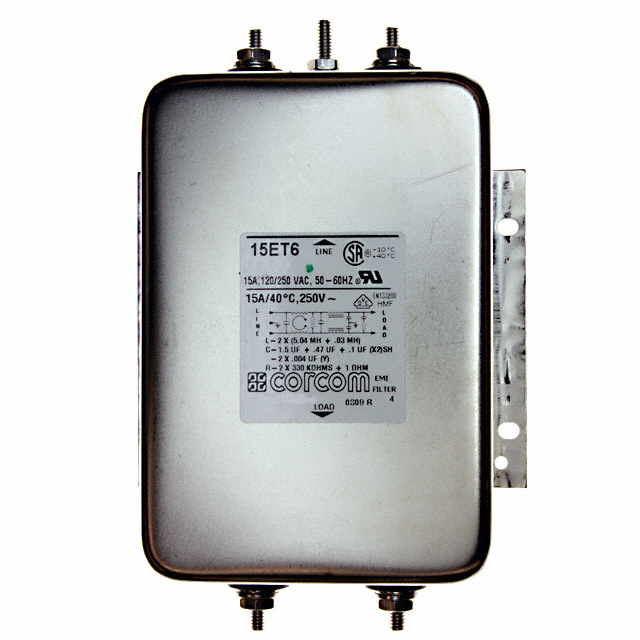

The TE Connectivity Corcom Filters 15ET6 is a single-phase EMC/EMI power line filter designed for switching power supplies. It features a two-stage filtering configuration with threaded post termination (8-32). Rated at 15A and 250VAC, it operates at 50/60Hz. The unit utilizes flange mount installation and provides commercial-grade RFI attenuation.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Threaded post termination interface
• Flange mount panel installation

Applications

• Switching power supply input stages
• Commercial electronic equipment requiring conducted noise suppression

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and certification marks. Ensure the threaded post termination matches the mating hardware specifications. Confirm RoHS compliance status for the specific production batch prior to integration into regulated assemblies.

Selection Notes

Select this component when high attenuation performance is required for switching power applications. The two-stage design offers superior noise reduction compared to single-stage alternatives. Verify that the 15A current rating aligns with the system's maximum load requirements and thermal environment.

Part Context

This part belongs to the Corcom EMI/RFI filter series by TE Connectivity. These filters are engineered to suppress electromagnetic interference in AC power lines. The 15ET6 specifically addresses noise generated by modern switching mode power supplies in commercial environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
