Product Detailed Parameters
- Description：LINE FILTER 440VAC 15A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：15 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

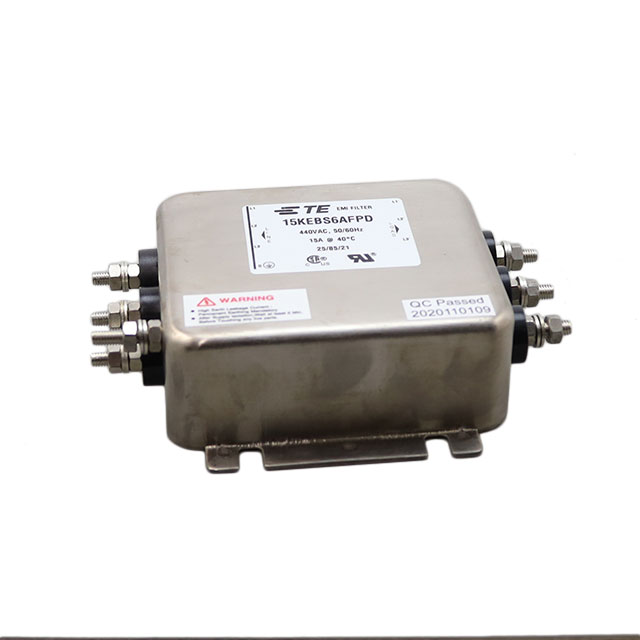

The 15KEBS6AFPD is a three-phase power line filter from the Corcom KEB series, rated for 15A and 440VAC at 50Hz. It features a single-stage EMI/RFI filtering configuration designed for general-purpose applications. The unit utilizes a threaded bolt flange mount style with screw termination for secure installation. This component provides superior performance noise suppression in industrial environments requiring robust power conditioning.
Feature Summary
- Provides superior performance EMI/RFI filtering for three-phase power lines
- Features a single-stage filtering configuration for effective noise reduction
- Designed with a threaded bolt flange mount for secure chassis integration
- Utilizes screw termination style for reliable electrical connections
Applications
- Industrial machinery power conditioning
- General-purpose three-phase equipment noise suppression
- Chassis-mounted power entry modules
Procurement Notes
Verify the specific current and voltage ratings against your system requirements before procurement. Confirm that the threaded bolt flange mounting style matches your chassis design. Check for availability as this part may have limited stock or be subject to discontinuation notices. Ensure compatibility with 440VAC 50Hz systems.
Selection Notes
Select this model when superior performance filtering is required for three-phase applications. It is suitable for chassis mounting where screw termination is preferred. Consider the physical dimensions and mounting hole patterns to ensure fit within the enclosure. Verify that the 15A rating meets the load requirements of the connected equipment.
Part Context
This component belongs to the Corcom KEB series of power line filters manufactured by TE Connectivity. The series is known for providing high-performance EMI/RFI suppression in industrial settings. The KEB series typically offers robust construction suitable for demanding environments.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation.
