Product Detailed Parameters
- Description：LINE FILTER 520VAC 15A CHASS MNT
- Series：KEB
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：15 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

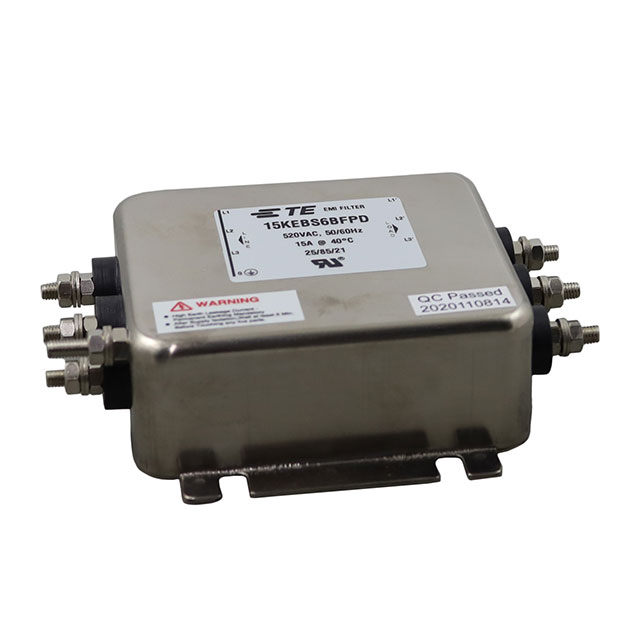

The TE Connectivity Corcom Filters model 15KEBS6BFPD is a three-phase power line filter belonging to the KEB series. It features a flanged chassis mount design with nut-style termination for secure installation. The component is rated for a continuous current of 15A and operates at a voltage of 520VAC. Designed for commercial EMI/RFI filtering applications, it provides noise attenuation for industrial power systems.
Feature Summary
- Provides effective EMI and RFI noise suppression for three-phase power lines
- Features a robust flanged chassis mount construction for stable integration
- Utilizes nut-style terminal connections for reliable electrical contact
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- Commercial electronic equipment requiring noise reduction
Procurement Notes
Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the flanged chassis mount style and nut-style terminations match your system requirements. Ensure the 15A current rating and 520VAC voltage specification are suitable for your specific application environment. Check for any recent product change notices or obsolescence alerts directly from the manufacturer.
Selection Notes
Select this component when three-phase EMI filtering is required for high-voltage industrial applications. The flanged chassis mount style offers mechanical stability compared to panel mount alternatives. Verify that the nut-style termination method aligns with your wiring infrastructure. Consider the physical dimensions and mounting hole patterns to ensure compatibility with existing chassis designs.
Part Context
This component is part of the Corcom KEB series, which specializes in three-phase power line filters. The series is designed for demanding industrial environments where significant noise suppression is necessary. TE Connectivity Corcom Filters is a recognized provider of electromagnetic interference solutions for global markets.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct replacements or cross-reference options based on specific electrical and mechanical constraints.
