Product Detailed Parameters
- Description：LINE FILTER 440VAC 15A CHASS MNT
- Series：KEH
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：15 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

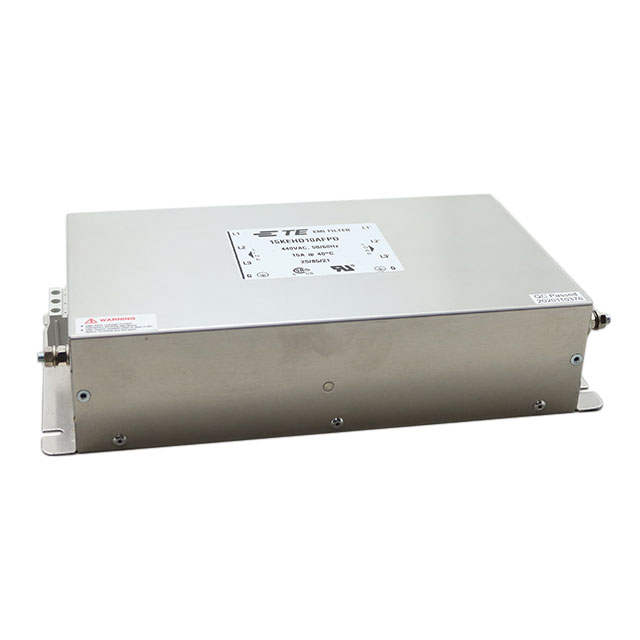

The 15KEHD10AFPD is a three-phase EMI/EMC power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount installation style with screw termination for secure electrical connections. The component is rated for a voltage of 440 VAC and supports a current rating of 15 A. Designed for operation at frequencies of 50 Hz and 60 Hz, it ensures compliance with UL and CSA standards. The physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It operates within a temperature range of -25 C to +85 C.
Feature Summary
- Provides two-stage attenuation for effective electromagnetic interference suppression
- Features an extended metal flange around the socket for improved high frequency shielding
- Includes a larger contact area for enhanced panel grounding
Applications
- Higher current power supplies
- Computing equipment work stations
- Base stations
- Server applications
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the chassis mount configuration and screw termination type match the intended enclosure design. Check for any updated regulatory compliance certifications required for the target market before finalizing procurement decisions.
Selection Notes
Select this component when a three-phase solution is required for industrial or computing environments. Ensure the 15 A current rating and 440 VAC voltage specification align with the power supply capacity. Consider the physical footprint of 350 mm x 160 mm x 92 mm for adequate chassis space allocation during the mechanical design phase.
Part Context
This model belongs to the KEH series of power line filters from TE Connectivity / Corcom. The series is designed to meet the demands of higher current equipment while providing enhanced EMI performance compared to standard versions. It serves as a specialized solution for noise reduction in sensitive electronic infrastructure.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official TE Connectivity resources for potential cross-references or updated series replacements.
