15KEHD10BFPD

Overview

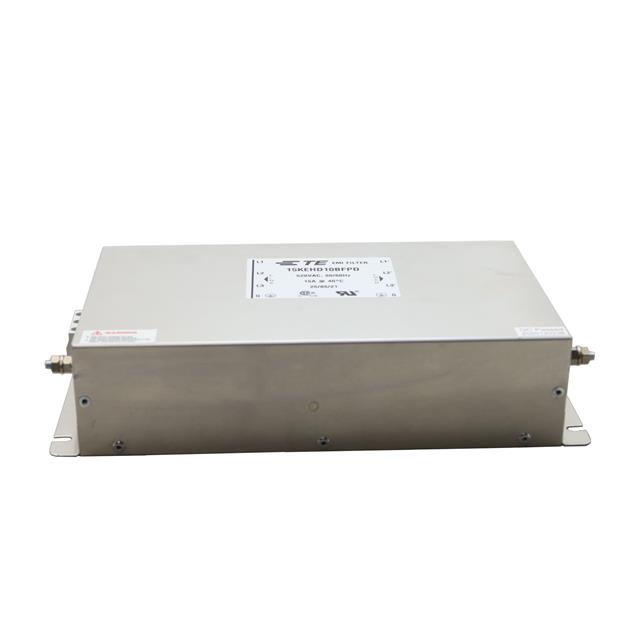

The 15KEHD10BFPD is a three-phase (Delta) EMC/EMI power line filter manufactured by TE Connectivity Corcom Filters. It supports a rated current of 15 A and a voltage rating of 520 VAC at operating frequencies of 50 Hz and 60 Hz. The unit features a two-stage filtering configuration and utilizes terminal block termination for electrical connections. Designed for chassis mounting, it complies with UL and CSA safety standards.

Feature Summary

• Provides two-stage EMI/RFI attenuation for three-phase Delta power systems
• Features robust chassis mount construction for industrial integration
• Utilizes terminal block termination for secure electrical interfacing

Applications

• Industrial machinery power conditioning
• Three-phase motor drive input protection
• Commercial equipment requiring EMI suppression

Procurement Notes

Verify the specific manufacturing lot date code against project requirements as component availability may vary. Confirm that the terminal block interface matches existing wiring harness specifications. Ensure the chassis mounting dimensions align with the enclosure design prior to procurement.

Selection Notes

Select this model for applications requiring high-current three-phase filtering in Delta configurations. Verify that the 15 A continuous current rating meets system load demands. Ensure the 520 VAC rating is compatible with the supply network voltage levels.

Part Context

This component belongs to the Corcom industrial power line filter series, designed for electromagnetic interference suppression in demanding environments. It serves as a critical component for maintaining power quality and protecting sensitive electronics from conducted noise in three-phase distribution networks.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models through official TE Connectivity datasheets before implementation.
