Product Detailed Parameters
- Description：LINE FILTER 520VAC 15A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：15 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M5)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

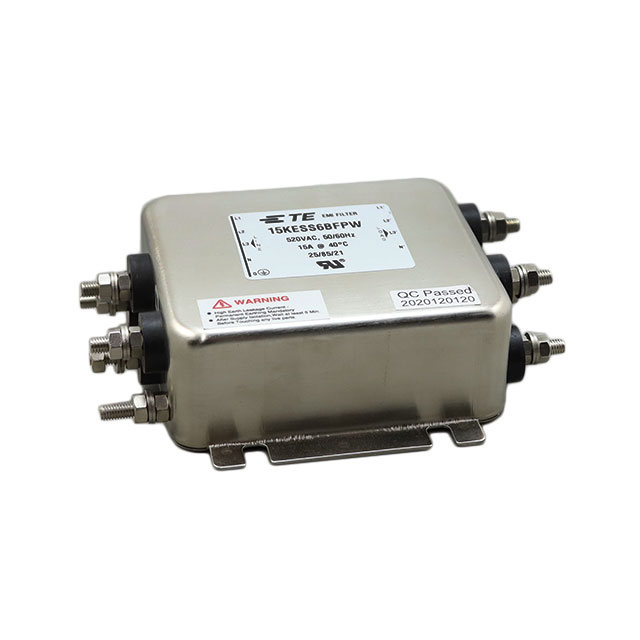

The 15KESS6BFPW is a three-phase general-purpose EMI power line filter manufactured by TE Connectivity Corcom. It supports a rated voltage of 520 VAC and a continuous current of 15 A at 50 Hz or 60 Hz operating frequencies. Designed for chassis mounting, the unit features screw termination connections and has physical dimensions of 96 mm in width, 107 mm in length, and 40 mm in height. The filter exhibits a leakage current of 5 mA and operates within a temperature range of -25 °C to +85 °C. It holds UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Utilizes a threaded bolt flange mount for secure chassis installation
- Constructed with screw-type electrical terminations
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise reduction
- General purpose EMI filtering in commercial environments
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential availability constraints. Confirm that the specific ordering suffix matches the required voltage and current ratings for your application. Ensure mechanical compatibility with existing chassis mounting points before procurement.
Selection Notes
Select this model for applications requiring 15 A capacity at 520 VAC. Verify that the chassis mounting style and screw termination type align with system integration requirements. Consider the physical dimensions when planning enclosure space allocation.
Part Context
This component belongs to the KES series of three-phase power line filters from TE Connectivity Corcom. The series offers various current ratings and voltage configurations designed for industrial and commercial power quality improvement. The KES series is characterized by robust construction suitable for demanding electrical environments.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference specifications carefully to ensure equivalent current, voltage, and mounting compatibility.
