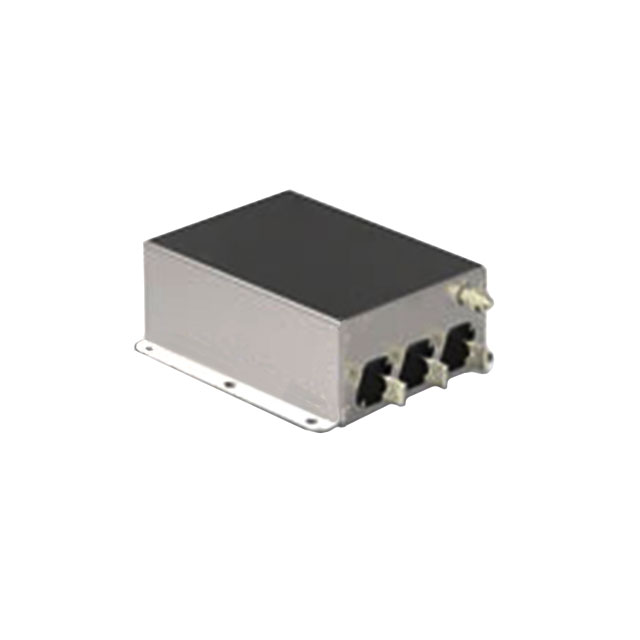

1600APS12P

$1,885.10

Description：LINE FLTR 690VAC 1.6KA CHASS MNT
Series：APS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box

SKU:d9714cab7cc8 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 690VAC 1.6KA CHASS MNT
Series：APS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box
Filter Type：Three Phase (Delta)
Configuration：Three Stage
Voltage - Rated DC：-
Voltage - Rated AC：690V
Current：1.6 kA
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-10°C ~ 50°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

1600APS12P

Overview

The TE Connectivity Corcom Filters 1600APS12P is a three-phase (Delta) EMC/EMI power line filter designed for chassis mounting. It supports a rated voltage of 690 VAC and a current capacity of 1.6 A at 50/60 Hz. The unit features a three-stage filtering configuration to ensure effective noise suppression in industrial environments.

Feature Summary

Three-stage EMI/RFI filtering architecture
Chassis mount construction
General purpose application design

Applications

Industrial machinery power systems
Three-phase Delta distribution networks
Equipment requiring high-voltage noise suppression

Procurement Notes

Verify the specific current rating requirement against the 1.6 A specification, as this value appears low for the series designation. Confirm the physical dimensions and terminal type match the installation panel requirements before ordering.

Selection Notes

Select this model for applications requiring three-phase Delta filtering at 690 VAC. Ensure the load current does not exceed the 1.6 A limit. Consider the chassis mounting style for integration into existing equipment enclosures.

Part Context

This component belongs to the Corcom APS series, which typically handles currents from 250 to 1600 Amps. The 1600APS12P represents a specific variant within this family, distinguished by its three-phase Delta configuration and 690 VAC rating.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the specific three-stage performance or chassis mounting constraints.
