1602530

Overview

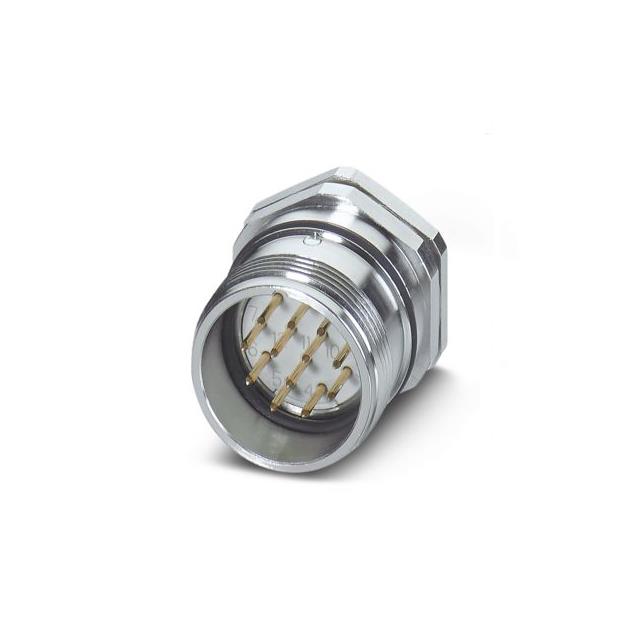

The Phoenix Contact 1602530 (RC-19P1N126000) is a circular metric connector housing designed for board-front mounting. It features a PA 6.6 insulator and CuZn contacts with Ni/Au plating. The component supports 100 mating cycles and utilizes soldering for connection. It is compatible with female M12 THR contact carriers for K, L, and M-code power applications.

Feature Summary

• Board-front installation design
• Compatible with M12 THR contact carriers
• Secure PCB mounting

Applications

• M12 power connections
• K-code power systems
• L-code power systems
• M-code power systems

Procurement Notes

Verify the specific suffix codes against official Phoenix Contact documentation to ensure exact material and configuration matches. Confirm that the intended application aligns with the specified M12 THR compatibility and board-front mounting requirements before procurement.

Selection Notes

Select this component when board-front mounting is required for M12 power interfaces. Ensure the system design accommodates the specified soldering connection method and the 100-cycle durability rating. Verify insulation material compatibility with the operating environment.

Part Context

This part belongs to the RC series of circular connectors from Phoenix Contact. It is engineered for industrial environments requiring robust power transmission via M12 interfaces. The design emphasizes secure PCB integration and standardized coding for K, L, and M configurations.

Replacement Considerations

Consult official Phoenix Contact cross-reference lists for verified substitutes. Generic equivalents may not match the specific M12 THR carrier compatibility or mounting specifications.
