1606510

Overview

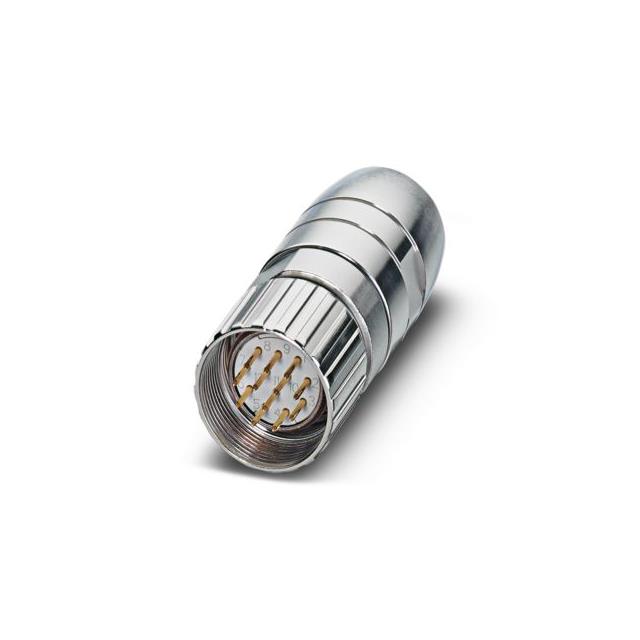

The Phoenix Contact 1606510 is an M23 circular cable connector from the UC series, designed for signal applications. It features a straight housing with screw locking and shielding capabilities. The connector utilizes a crimp connection profile with male pin contacts. It supports 17 poles, each accommodating a contact diameter of 1 mm. The rated current per contact is specified as 8 A. The unit employs standard rotation direction and is intended for robust industrial connectivity.

Feature Summary

• Straight design with screw locking mechanism
• Shielded construction for signal integrity
• Crimp termination for reliable contact

Applications

• Industrial signal transmission
• Equipment connection wiring
• Field installation cabling

Procurement Notes

Verify the specific ordering code 1606510 against official Phoenix Contact documentation to ensure compatibility with required contact inserts. Confirm that the 17-pin configuration and 8 A rating align with system electrical requirements. Check for any specific environmental ratings or compliance certifications relevant to the deployment environment before procurement.

Selection Notes

Select this component when a shielded M23 connector is required for signal lines. Ensure the application supports crimp termination methods. Verify that the 17-pole count matches the circuit design. Consider the straight form factor and screw lock for mounting constraints and vibration resistance needs in the target assembly.

Part Context

This part belongs to the Phoenix Contact UC series of circular metric connectors. It is distinct from power connectors and module sockets like the STG-MTN series. The 1606510 specifically addresses signal distribution needs rather than high-power data transfer or simple terminal block functions.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Cross-referencing requires matching M23, 17-pin, shielded specifications from other manufacturers if alternatives are needed.
