1609042-6

Overview

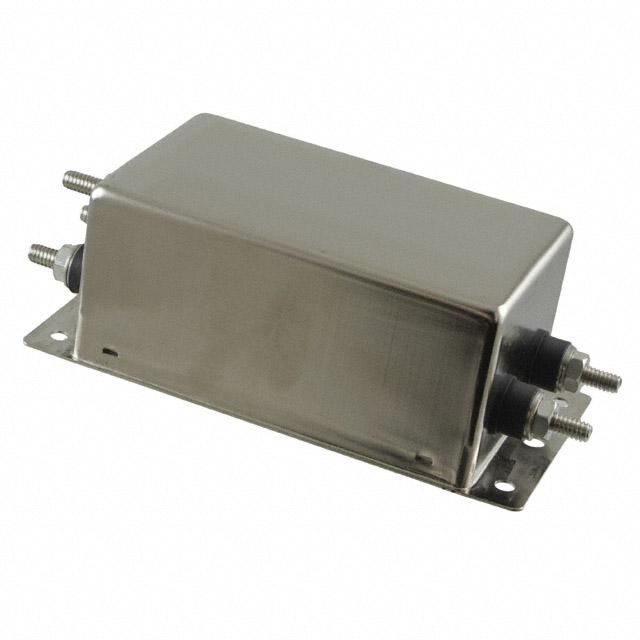

The TE Connectivity Corcom Filters 1609042-6 is a single-phase power line filter designed for chassis mounting. It supports a rated current of 60A at 120V/250VAC and operates within a frequency range of 50Hz to 60Hz. The component features a two-stage filtering configuration with quick-connect termination style. It is certified by UL, CSA, and VDE standards and functions reliably within an operating temperature range of -10°C to 40°C.

Feature Summary

• Provides two-stage EMI/RFI noise suppression for AC power lines
• Supports high-current applications up to 60A rating
• Features quick-connect terminals for efficient circuit integration

Applications

• Industrial machinery power supplies
• Medical equipment power entry modules
• Commercial IT infrastructure systems

Procurement Notes

Verify the specific voltage rating (120V or 250VAC) required for your application against the datasheet specifications. Confirm that the chassis mounting dimensions and quick-connect terminal types match your existing PCB or wiring harness design. Ensure compliance with local safety certifications such as UL, CSA, or VDE before finalizing procurement decisions.

Selection Notes

Select this model when high current capacity of 60A is required for single-phase AC applications. Consider the chassis mount form factor and quick-connect termination style for assembly compatibility. Evaluate the two-stage filtering performance against specific EMI/RFI attenuation requirements defined in the official technical documentation.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, specifically categorized under power line filter modules. It is engineered for robust electromagnetic interference suppression in demanding electrical environments. The part number 1609042-6 identifies a specific variant within the broader Corcom product family focused on high-current AC power protection.

Replacement Considerations

FN2080A-60-06
