Product Detailed Parameters
- Description：LINE FILTER 30A CHASSIS MOUNT
- Series：BCF
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：30 A
- Frequency - Operating：50/60Hz
- Applications：Inverters, Power Drive Systems
- Approval Agency：UR, VDE
- Operating Temperature：-10°C ~ 50°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

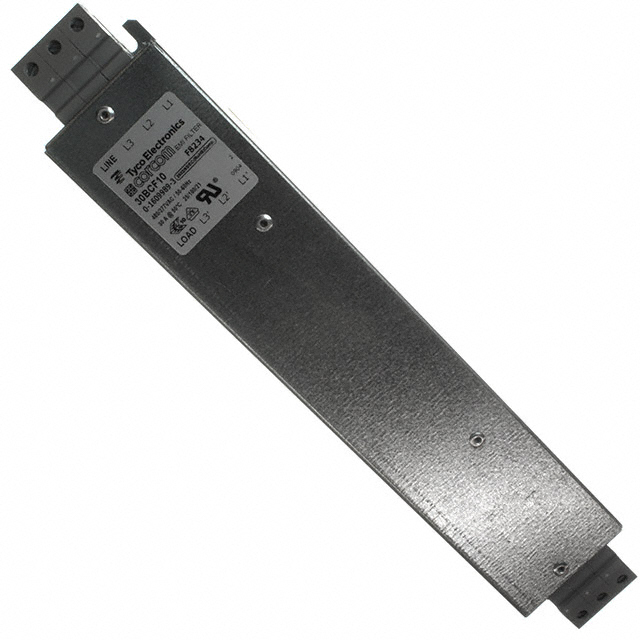

The TE Connectivity Corcom 1609989-3 is a three-phase (Delta) EMC/EMI line filter designed for inverter power drive systems. It features a two-stage filtering architecture with terminal block input and output termination types. The component supports a current rating of 30 A at an operating voltage of 480 VAC for 50/60 Hz applications. Maximum leakage current is specified at 33 mA under 250VAC, 50Hz conditions.
Feature Summary
- Two-stage EMI/EMC filtering configuration
- Terminal block input and output termination
- Designed for inverter power drive systems
Applications
- Inverter power drive systems
- Three-phase industrial equipment
- Electromagnetic interference suppression in Delta wiring configurations
Procurement Notes
Verify the specific part number suffix against official TE Connectivity documentation to ensure correct current rating and termination type compatibility. Confirm that the application environment matches the specified 480 VAC operating voltage and 30 A current rating requirements before procurement.
Selection Notes
Select this model for three-phase Delta systems requiring terminal block connections. Ensure the load current does not exceed 30 A and the system voltage aligns with the 480 VAC specification. Verify leakage current limits meet safety standards for the intended installation.
Part Context
This component belongs to the Corcom BCF series of three-phase filters manufactured by TE Connectivity. It is engineered specifically for noise reduction in power electronics environments, providing compliance with electromagnetic compatibility standards for industrial machinery.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference current ratings and termination styles when evaluating potential replacements to maintain system integrity.
