1609989-6

Overview

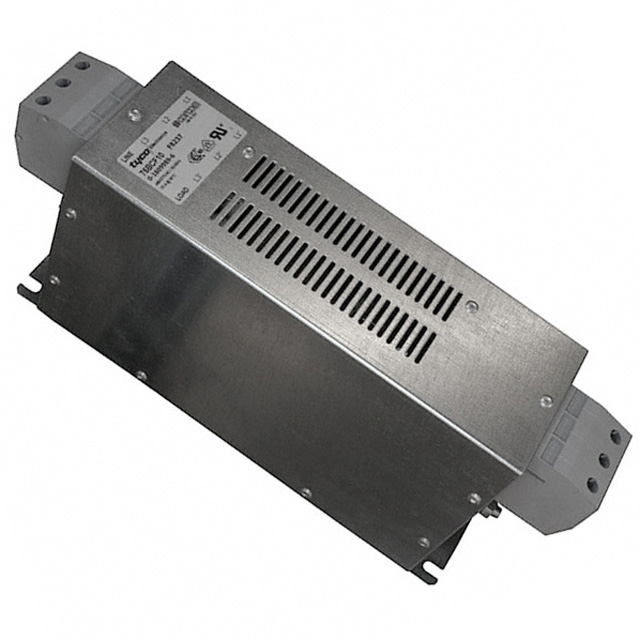

The TE Connectivity Corcom 1609989-6 is a three-phase power line filter designed for industrial applications. It features a compact, lightweight book-form design suitable for panel mounting. The unit provides effective common and differential mode noise attenuation below 100 kHz. Key electrical specifications include a current rating of 75 A and an input leakage current of 0.0087 A. The wiring configuration supports Delta connections with three wires plus ground. Termination types for both input and output are terminal blocks, facilitating secure electrical connections within control systems.

Feature Summary

• Compact, lightweight book-form design for efficient space utilization
• Effective common and differential mode noise reduction below 100 kHz
• Terminal block termination for secure input and output connections
• Supports Delta wiring configuration with three wires plus ground

Applications

• Variable speed motor drives in process automation equipment
• Elevator control systems
• Industrial machinery requiring EMI suppression

Procurement Notes

Verify the exact part number suffix and manufacturing status before ordering, as this component may be obsolete or superseded by newer revisions. Confirm that the 75 A current rating and terminal block termination meet your specific system requirements. Ensure compatibility with Delta wiring configurations and verify that the operating voltage range aligns with your application's electrical parameters to prevent performance issues.

Selection Notes

Select this filter when high current handling capacity of 75 A is required for three-phase systems. Consider its book-form factor if panel space is limited. Verify that the terminal block termination method matches existing cabling infrastructure. Ensure the noise attenuation characteristics below 100 kHz address the specific electromagnetic interference concerns of the target application, particularly for variable frequency drives.

Part Context

This component belongs to the TE Connectivity Corcom BCF series of three-phase power line filters. These filters are engineered for robust EMI suppression in industrial environments. The series typically offers various current ratings and form factors to accommodate different installation constraints. This specific model represents a standard solution for general industrial noise reduction tasks.

Replacement Considerations

Public sources indicate that part number 1609989-6 is obsolete and no longer manufactured. Engineers should consult TE Connectivity documentation for direct replacement part numbers within the same Corcom series that maintain equivalent current ratings and termination styles.
