1609990-9

Overview

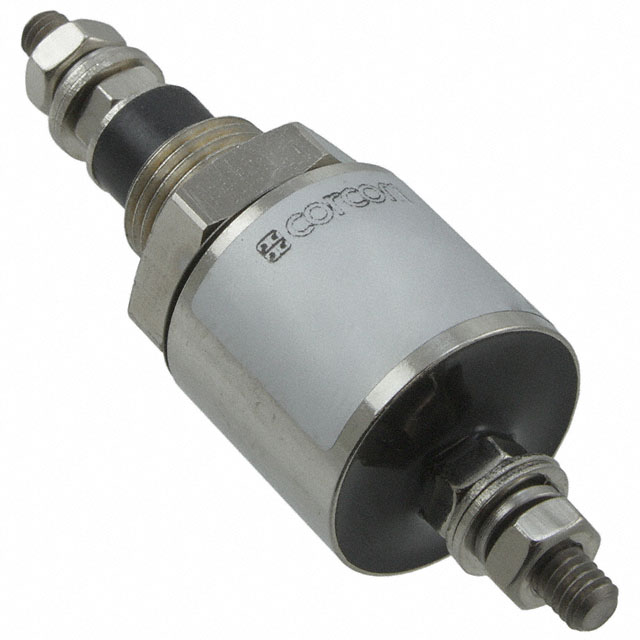

The TE Connectivity Corcom Filters 1609990-9 is a feedthrough capacitor from the AFC Series. It features a capacitance of 0.01 µF (10000 pF) and a rated voltage of 250V. The component supports a current rating of 32 A and utilizes an axial package with threaded terminals. Its physical dimensions are 0.787 inches in diameter by 1.181 inches in length (20.00 mm x 30.00 mm), with M4 thread specifications.

Feature Summary

• Provides high-frequency noise suppression through feedthrough capacitor technology
• Designed for robust performance in demanding electrical environments
• Features threaded terminal configuration for secure mechanical mounting

Applications

• Electronic equipment requiring EMI/RFI filtering
• Power supply input stages
• Signal line protection circuits

Procurement Notes

Verify the specific AFC series datasheet to confirm current availability status, as components may be subject to discontinuation notices. Ensure that the M4 threaded terminal specification matches the design requirements for panel or chassis mounting. Cross-reference the 32 A current rating against operational load conditions to prevent thermal issues during implementation.

Selection Notes

Select this component when a 0.01 µF capacitance value is required for high-voltage applications up to 250V. The 32 A current handling capability distinguishes it from lower-rated alternatives within the same series. Consider the axial threaded form factor for direct board-to-panel or chassis mounting solutions where space constraints allow for the specified cylindrical dimensions.

Part Context

This part belongs to the AFC Series of feedthrough capacitors manufactured by TE Connectivity Corcom Filters. The series is characterized by its ability to handle significant current loads while providing effective electromagnetic interference filtration. These components are engineered for reliability in industrial and commercial electronic systems.

Replacement Considerations

Consult official substitution guides for equivalent parts within the AFC series or compatible feedthrough capacitor lines. Verify that any substitute maintains the 0.01 µF capacitance, 250V rating, and 32 A current capacity.
