1609992-3

Overview

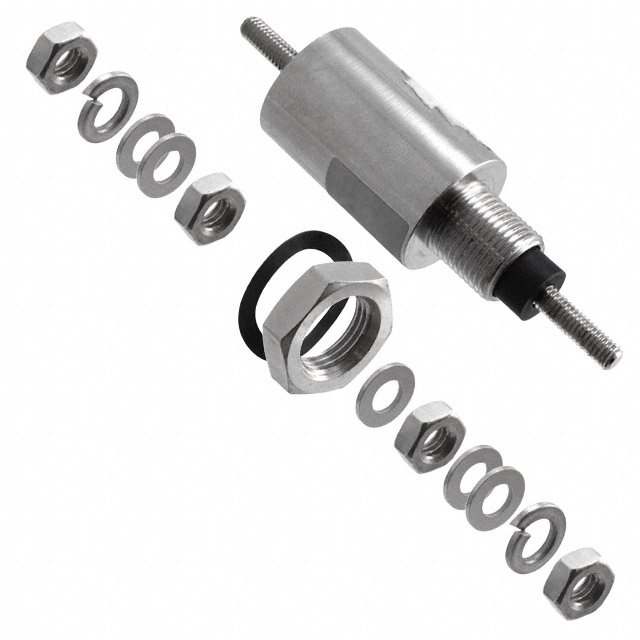

The TE Connectivity Corcom Filters 1609992-3 is a feedthrough capacitor with a capacitance of 0.047 µF and a rated voltage of 130V. It supports a maximum current of 16 A and features axial threaded terminals with M4 thread specification. The component measures 20.00mm in diameter by 30.00mm in length. It operates within a temperature range of -40°C to 60°C and provides an insertion loss of 50dB at 100MHz. This part belongs to the DFC series and holds a Y4 safety rating.

Feature Summary

• Provides EMI/RFI suppression through feedthrough capacitor technology
• Features axial threaded terminal design for secure mounting
• Includes Y4 safety classification for electrical isolation

Applications

• EMI filtering in electrical systems
• RFI suppression in electronic equipment
• Power line noise reduction

Procurement Notes

Verify obsolescence status as this product is marked as discontinued by the manufacturer. Confirm availability through secondary markets or authorized distributors if sourcing is required. Check for equivalent replacement components from the same series or alternative manufacturers offering similar specifications. Ensure compatibility with existing mechanical mounting requirements due to the specific axial threaded terminal design.

Selection Notes

Select this component only if the specific 0.047 µF capacitance and 130V rating match the circuit requirements. Consider the 16 A current handling capability and M4 threading for mechanical integration. Evaluate the operating temperature range and insertion loss characteristics against system needs. Note that the discontinued status may impact long-term supply chain stability.

Part Context

This component is part of the TE Connectivity Corcom Filters DFC series, which specializes in EMI power filters. The series offers various ratings suitable for controlling emissions across diverse applications. The 1609992-3 specifically addresses low-to-medium current filtering needs with its 16 A rating and compact axial form factor.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, alternative components from the DFC series or other manufacturers should be evaluated based on matching electrical and mechanical specifications.
