Product Detailed Parameters
- Description：CAP FEEDTHRU 0.01UF 130V AXIAL
- Series：DFC
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Voltage - Rated：130V
- Current：32 A
- Operating Temperature：-40°C ~ 60°C
- Mounting Type：-
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：0.787" Dia x 0.709" L (20.00mm x 18.00mm)
- Capacitance：10000 pF
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：45dB @ 100MHz
- Temperature Coefficient：-
- Ratings：Y4
- Height (Max)：-
- Thread Size：M4
Download product information
Overview

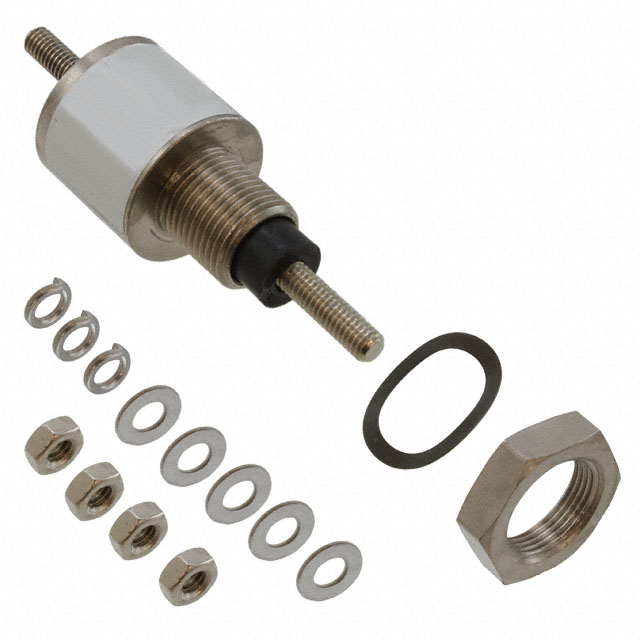

The TE Connectivity Corcom Filters model 1609992-6 is a feedthrough capacitor belonging to the DFC series. It features a capacitance of 0.01 µF (10,000 pF) and a rated voltage of 130V. The component utilizes an axial package with threaded terminals for panel mounting. This EMI feedthrough filter is designed for high-frequency noise suppression in electrical circuits.
Feature Summary
- Provides electromagnetic interference suppression through feedthrough capacitor technology
- Utilizes axial configuration with threaded terminals for secure panel mounting
- Designed for high-frequency noise attenuation in power lines
Applications
- Power supply input filtering
- Electronic equipment chassis grounding
- Industrial control system noise reduction
Procurement Notes
Verify component authenticity and datasheet alignment due to obsolete status. Confirm terminal thread specifications match existing panel cutouts. Check for RoHS compliance documentation if required by project standards. Ensure replacement availability as this specific part number may no longer be in active production.
Selection Notes
Select based on required capacitance value and voltage rating compatibility with the circuit. Verify physical dimensions and thread size for mechanical integration. Consider current handling capabilities relative to the application load. Evaluate frequency response characteristics against specific noise profiles encountered in the target environment.
Part Context
This component is part of the Corcom DFC series of feedthrough filters manufactured by TE Connectivity. These filters are engineered for robust performance in demanding environments. The series offers various capacitance and current ratings to suit different power line filtering requirements across industrial and commercial sectors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult manufacturer catalogs for equivalent DFC series components with matching electrical and mechanical specifications.
