Product Detailed Parameters
- Description：CAP FEEDTHRU 0.1UF 130V AXIAL
- Series：FFD
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Voltage - Rated：130V
- Current：16 A
- Operating Temperature：-40°C ~ 60°C
- Mounting Type：-
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：0.787" Dia x 3.701" L (20.00mm x 94.00mm)
- Capacitance：0.1 µF
- Tolerance：-
- DC Resistance (DCR) (Max)：8mOhm
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：M4
Download product information
Overview

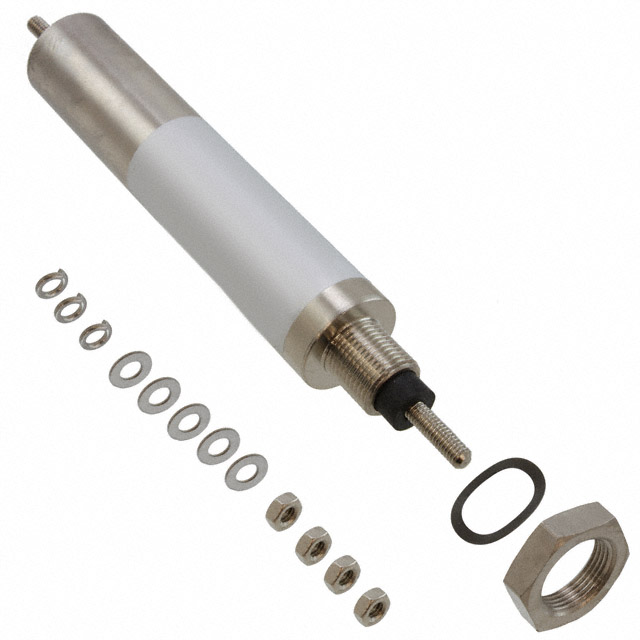

The TE Connectivity Corcom Filters part number 1609993-8 is a feed-through capacitor belonging to the FFD series. It features a capacitance of 0.1 µF and a rated voltage of 130V. The component supports a current rating of 16 A and utilizes axial leads with threaded terminals for mounting. Its physical dimensions are specified as 0.787 inches in diameter by 1.181 inches in length (20.00 mm x 30.00 mm), incorporating an M4 thread specification.
Feature Summary
- Provides high-frequency noise suppression through feed-through capacitor technology
- Features robust mechanical construction with threaded terminal design
- Supports high current handling capabilities within a compact axial package
Applications
- General electronic equipment requiring EMI/RFI filtering
- Power supply input stages
- Industrial control systems
Procurement Notes
Verify component status carefully, as public records indicate this specific part number may be obsolete or discontinued. Confirm availability directly with authorized distributors or the manufacturer before finalizing procurement plans. Ensure that any substitute components meet identical electrical and mechanical specifications to maintain system integrity and compliance.
Selection Notes
Select this component when a 0.1 µF feed-through capacitor with 130V rating is required. Verify that the M4 threaded terminal interface matches the chassis mounting requirements. Consider the 16 A current rating and axial form factor during layout planning. Check for active alternatives if obsolescence is confirmed.
Part Context
This component belongs to the TE Connectivity Corcom Filters FFD series, which specializes in feed-through capacitors. These devices are designed for effective electromagnetic interference suppression in power lines. The series typically offers various capacitance values and voltage ratings to suit different industrial and commercial applications.
Replacement Considerations
Public data indicates this part is obsolete. Consult official TE Connectivity documentation for verified replacement part numbers within the same series or equivalent specifications.
