1611046

Overview

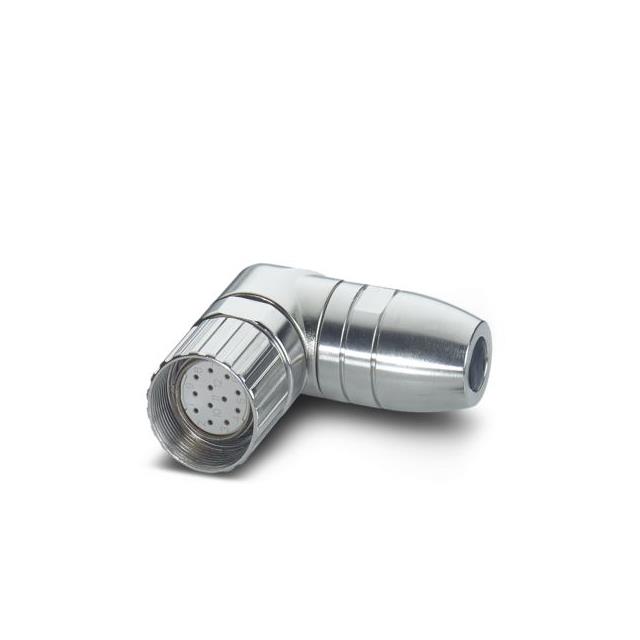

Phoenix Contact part number 1611046 is a circular metric connector from the RC series, specifically designed for signal applications. It features a 12-position configuration with female socket contacts intended for plug connections. The unit utilizes an M23 cable-side interface with a screw locking mechanism to ensure secure attachment. A key design characteristic is its angled cable exit orientation, which facilitates compact routing in confined spaces. The connector includes integrated shielding capabilities to maintain signal integrity in electrically noisy environments.

Feature Summary

• Angled cable exit design for optimized spatial arrangement
• Integrated shielding for signal protection
• Screw locking mechanism for secure connection

Applications

• Industrial signal transmission systems
• Control cabinet wiring
• Factory automation equipment

Procurement Notes

Verify that the specific application requires the angled exit variant rather than straight configurations. Confirm compatibility with mating connectors within the same RC series family. Ensure proper grounding procedures are followed if operating voltages exceed safety limits defined in installation guidelines. Cross-reference official Phoenix Contact documentation for precise mechanical dimensions and mating requirements before finalizing procurement.

Selection Notes

Select this component when space constraints necessitate an angled cable entry point. The 12-position count suits moderate-density signal routing needs. Verify that the screw lock mechanism aligns with maintenance accessibility requirements. Consider the shielding feature if electromagnetic interference mitigation is critical for the specific signal lines being routed.

Part Context

This component belongs to the Phoenix Contact RC series of circular metric connectors. These connectors are engineered for robust performance in industrial settings. The series offers various contact counts and exit angles to accommodate diverse wiring layouts. Part 1611046 represents a specific configuration within this broader product line focused on signal integrity and reliable mechanical engagement.

Replacement Considerations

Consult official Phoenix Contact catalogs for direct substitutes within the RC series. Verify that any alternative maintains identical pin counts, shielding properties, and locking mechanisms. Ensure mechanical compatibility with existing panel cutouts and mating receptacles before substitution.
