Overview

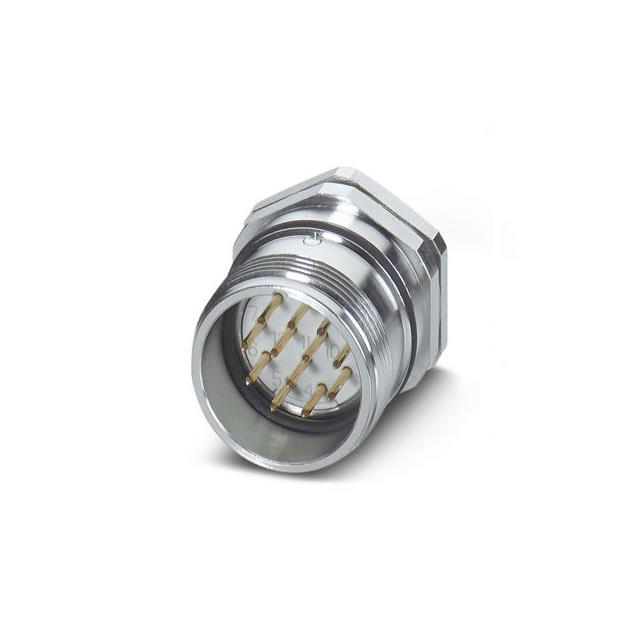

Phoenix Contact part number 1613142 is an M23 device connector from the RC series, designed for front mounting on equipment panels. It features a straight configuration with shielding capabilities to ensure signal integrity in industrial environments. The connector utilizes a plug housing type and supports solder termination for secure PCB attachment. Key electrical specifications include 6 contacts, comprising 3 power pins, housed within an M23 threaded coupling nut. The component is engineered for robust data and power transmission applications requiring reliable mechanical connection.

Feature Summary

• Front-mounted design facilitates direct installation on equipment enclosures
• Shielded construction provides electromagnetic interference protection
• M23 threaded coupling ensures secure mechanical locking

Applications

• Industrial control panel wiring
• Equipment interface connections
• Data and power distribution systems

Procurement Notes

Verify the specific ordering code against official Phoenix Contact documentation to confirm compatibility with required mating connectors and cable assemblies. Ensure that the solder termination method aligns with your printed circuit board manufacturing processes. Cross-reference the shielding requirements with your system's grounding strategy to maintain effective noise immunity during operation.

Selection Notes

Select this component when a shielded, front-mount solution is required for M23 interfaces. The straight configuration suits applications where space allows linear cable exit. Verify contact count requirements, as this unit provides three power contacts alongside signal lines. Confirm that the solder termination method is compatible with your assembly workflow before finalizing the selection.

Part Context

This connector belongs to Phoenix Contact's RC series of circular metric connectors. These components are part of a broader portfolio offering various configurations for data transmission and power supply needs. The series emphasizes reliability and ease of assembly for industrial automation and machinery applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material. Consult official Phoenix Contact catalogs for potential alternatives if this specific model is discontinued or unavailable.
