1615309

Overview

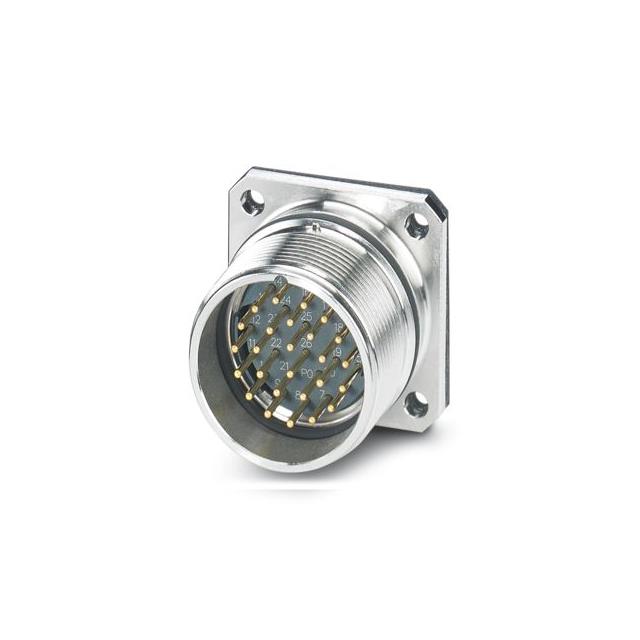

Phoenix Contact part number 1615309 is a HC series heavy-duty power connector, specifically the HC-26P1N322300 model. It features a front-mount panel installation design with a straight head configuration and M27 screw locking mechanism. The connector provides 26 positions utilizing pin-type contacts with flat sealing for environmental protection. It includes shielding capabilities and employs solder pin wiring methods for secure electrical connections. This component complies with RoHS II directives and is engineered for robust signal and power transmission in demanding industrial environments.

Feature Summary

• Front-mount panel installation with straight head and M27 screw locking
• 26-position pin-type contact configuration with flat sealing
• Integrated shielding for electromagnetic interference protection
• Solder pin wiring method for reliable PCB or cable termination

Applications

• Energy storage system interconnections
• Industrial equipment signal transmission
• Heavy-duty power interface integration
• Single solution combining power and data interfaces

Procurement Notes

Verify the exact part number 1615309 against official Phoenix Contact documentation to confirm compatibility with specific mating connectors and housing requirements. Ensure that the M27 locking thread and solder pin specifications align with the target assembly design. Cross-reference the RoHS II compliance status and shielding requirements with project standards before finalizing procurement decisions.

Selection Notes

Select this connector when a robust, shielded interface is required for both signal and power applications within energy storage or industrial systems. The HC series offers second-generation reliability with combined functionality. Consider the front-mount installation style and M27 locking mechanism for secure panel integration. Verify that the solder pin termination method suits the manufacturing process and that the 26-position count meets the circuit density needs.

Part Context

The HC series from Phoenix Contact represents a line of heavy-duty connectors designed for high-performance industrial applications. Part 1615309 belongs to this family, emphasizing durability and versatility in challenging environments. The series supports various configurations to meet diverse connectivity demands, ensuring stable performance for critical infrastructure components where reliability and environmental resistance are paramount.

Replacement Considerations

Consult official Phoenix Contact catalogs for direct substitutes within the HC series that match the 26-pin count, M27 locking, and shielding specifications. Ensure any alternative maintains the same front-mount installation type and solder pin termination method to guarantee mechanical and electrical compatibility without redesigning the mounting structure.
