1619965

Overview

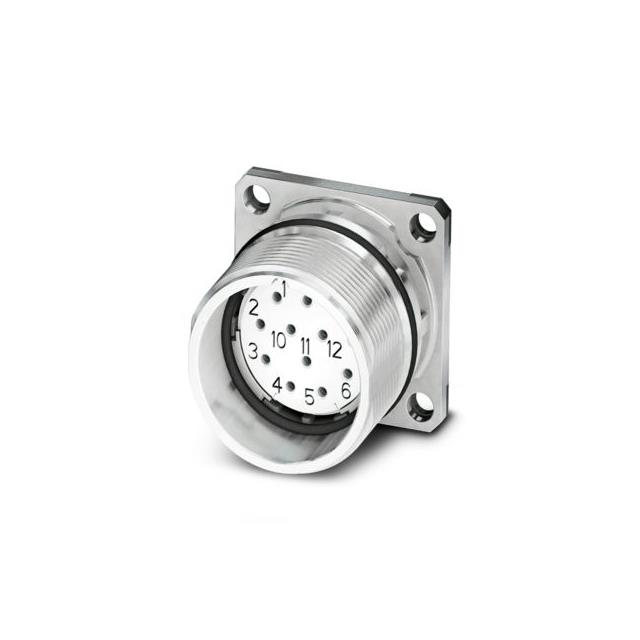

Phoenix Contact model 1619965 is a circular connector component within the M17 to M58 series, designed for industrial automation and electrical drive technology applications. This product belongs to the signal connector category, specifically supporting configurations with up to 19 positions in sizes M17 and M23. The housing design allows for the installation of either pin or female contacts to suit specific circuit requirements. It provides EMC protection and achieves an IP67 degree of protection against dust and water ingress. The unit utilizes a plastic-molded design for robustness.

Feature Summary

• Supports signal transmission with configurable pin or female contact installations
• Provides electromagnetic compatibility (EMC) protection for signal integrity
• Achieves IP67 degree of protection for harsh environment resilience
• Constructed with a durable plastic-molded housing design

Applications

• Industrial automation systems
• Electrical drive technology connections
• Infrastructure applications requiring robust signal connectivity

Procurement Notes

Verify that the specific order quantity meets the manufacturer's standard packaging requirements. Confirm the exact contact configuration needed, as housings are available for both pin and female contacts. Ensure the application environment aligns with the IP67 rating and EMC protection specifications provided for this connector series. Cross-reference the M17 or M23 size requirement with your panel space constraints before finalizing the purchase.

Selection Notes

Select this component when a robust signal connector with high environmental protection is required. The choice between pin and female contacts depends on the mating cable or panel interface design. Consider the M17 or M23 size based on the number of signal lines needed, up to 19 positions. The plastic-molded construction offers durability suitable for industrial settings where mechanical stress and exposure to elements are present.

Part Context

This part is part of Phoenix Contact's extensive range of circular connectors, spanning from M5 to M58. It falls under the signal connector segment, which includes products tested over many years in various industrial fields. The series emphasizes versatility, offering straight or angled options and solutions for signals or power, ensuring compatibility with diverse automation and infrastructure needs.

Replacement Considerations

Check for cross-manufacturer compatible connectors in the M17 to M40 Pro series if alternative sourcing is required. Verify that any substitute maintains the same IP67 rating and EMC protection levels. Ensure the replacement supports the necessary position count and contact type (pin or female) to maintain system functionality without modification.
