1623254

Overview

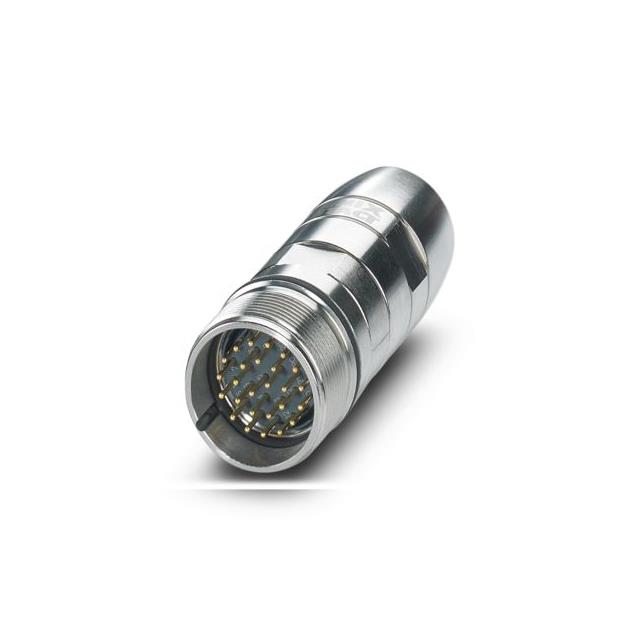

The Phoenix Contact 1623254 is a HC series coupler connector designed for signal applications. It features a straight mounting angle and free-hanging style with an M27 screw locking mechanism. The component provides 26 positions using male pin contacts in a crimp termination style. It is shielded and rated for IP67 protection. Electrical ratings include 48 VAC, 74 VDC voltage, and an 8 A current rating.

Feature Summary

• Straight plug-in coupling connector design
• M27 screw locking mechanism for secure attachment
• Shielded construction for signal integrity
• IP67 environmental protection rating

Applications

• Industrial signal transmission systems
• Control cabinet wiring connections
• Automation equipment interconnects

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with mating connectors and cable specifications. Confirm that the required contact type matches the application needs. Check for updated environmental compliance documentation before integration into final assemblies.

Selection Notes

Select this model when a robust, shielded circular connector is required for signal lines. The M27 size and screw lock provide mechanical stability in vibrating environments. Ensure the cable diameter falls within the specified range for proper sealing and strain relief performance.

Part Context

This part belongs to the HC series of heavy-duty power and signal connectors from Phoenix Contact. The series is known for modular designs that support various housing and contact combinations. This specific item serves as a cable-side coupler connector for industrial networking and control applications.

Replacement Considerations

Direct substitutes must match the M27 thread, 26-position count, and screw lock mechanism. Verify that any alternative maintains the same IP67 rating and shielding requirements to ensure functional equivalence in existing setups.
