Overview

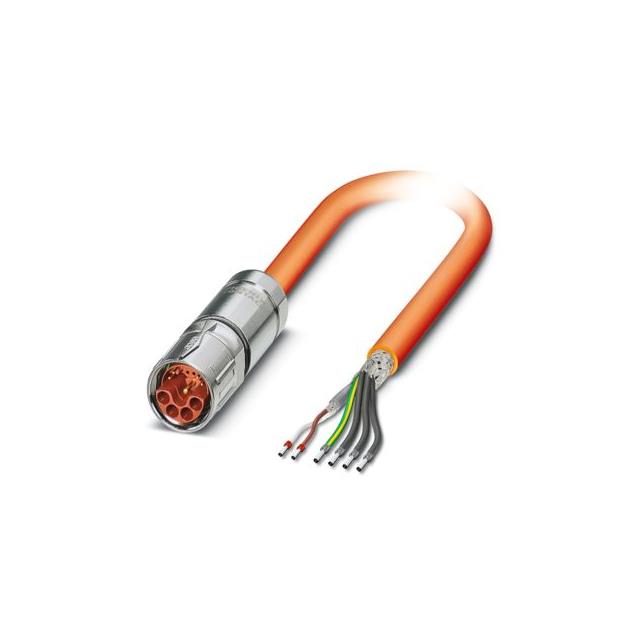

Phoenix Contact part number 1627074 is a pre-assembled circular cable assembly belonging to the SHK series. It features an M23 male connector with a straight configuration. The assembly provides four signal positions, four power positions, and one protective earth (PE) contact. The cable length is specified as 5.00 meters (16.40 feet). The outer jacket is constructed from halogen-free polyurethane (PUR) in orange RAL 2003 color. The unit is shielded to ensure electromagnetic compatibility in industrial environments.

Feature Summary

• Pre-assembled M23 male connector with integrated shielding for reliable signal integrity
• Hybrid design combining multiple signal and power circuits within a single compact housing
• Halogen-free PUR cable jacket providing resistance to oils, chemicals, and mechanical wear

Applications

• Industrial automation control systems
• Factory controller interconnections
• Electrical equipment engineering connections

Procurement Notes

Verify that the specific order matches the required hybrid pinout configuration of 4+4+PE contacts. Confirm the 5-meter cable length meets installation spatial requirements. Ensure the M23 straight male connector geometry aligns with the mating female receptacle interface. Check that the shielded construction satisfies the electromagnetic interference mitigation needs of the target application environment.

Selection Notes

Select this component when a fixed-length, factory-terminated connection is preferred over field-assembled alternatives. The hybrid arrangement reduces cabling complexity by consolidating signal and power lines. The robust PUR jacket makes it suitable for demanding industrial settings where exposure to fluids or abrasion is likely. Verify that the straight M23 form factor fits within the available panel or machine space constraints.

Part Context

This assembly is part of Phoenix Contact's SHK series of circular connectors. The series offers various configurations for signal and power transmission. The M23 size provides a balance between high pin count capacity and manageable physical dimensions. This specific item represents a standardized, ready-to-install solution for common industrial connectivity needs.

Replacement Considerations

Consult official Phoenix Contact cross-reference tools for verified substitutes. Ensure any replacement maintains the identical 4+4+PE contact arrangement. Match the M23 straight male interface and 5-meter length precisely. Verify that alternative cables possess equivalent shielding and PUR jacket specifications for environmental durability.

FAQ

What is the contact arrangement for this cable assembly?

The assembly features a hybrid configuration with four signal positions, four power positions, and one protective earth (PE) contact.

Is the cable assembly shielded?

Yes, the product is explicitly described as shielded to support electromagnetic compatibility in industrial applications.

What material is used for the cable jacket?

The outer jacket is made of halogen-free polyurethane (PUR), which offers resistance to oils and mechanical stress.
