1628790

Overview

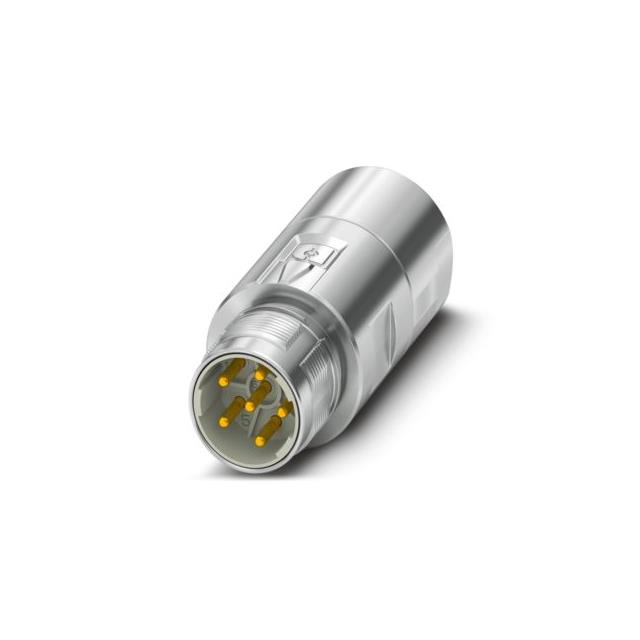

Phoenix Contact part number 1628790 is a M23 PRO Series sensor connector. It features a male plug configuration with six positions, specifically five power contacts and one protective earth (PE) position. The connector utilizes a crimped termination method for reliable electrical connections. Designed for industrial environments, it offers high ingress protection ratings of IP66 and IP68 when mated. The unit is intended for cable mounting applications.

Feature Summary

• M23 size circular connector design
• Male plug gender configuration
• Crimped contact termination method
• IP66 and IP68 ingress protection capability

Applications

• Industrial sensor signal transmission
• Power distribution in automation systems
• Harsh environment equipment interconnection

Procurement Notes

Verify the specific datasheet version to confirm pinout assignments and mating compatibility with corresponding receptacles. Ensure that the crimping tool specifications match the contact requirements for this series. Confirm environmental sealing requirements align with the stated IP ratings for the intended installation location.

Selection Notes

Select this component based on the requirement for a robust M23 interface with dedicated PE functionality. Consider the crimp termination process for assembly line integration. Evaluate the straight cable entry orientation against spatial constraints within the control cabinet or machinery housing.

Part Context

This connector belongs to the Phoenix Contact M23 PRO Series, which is engineered for demanding industrial applications requiring durable circular connectivity. The series supports various contact configurations and protection levels to meet diverse automation needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
