1629082

Overview

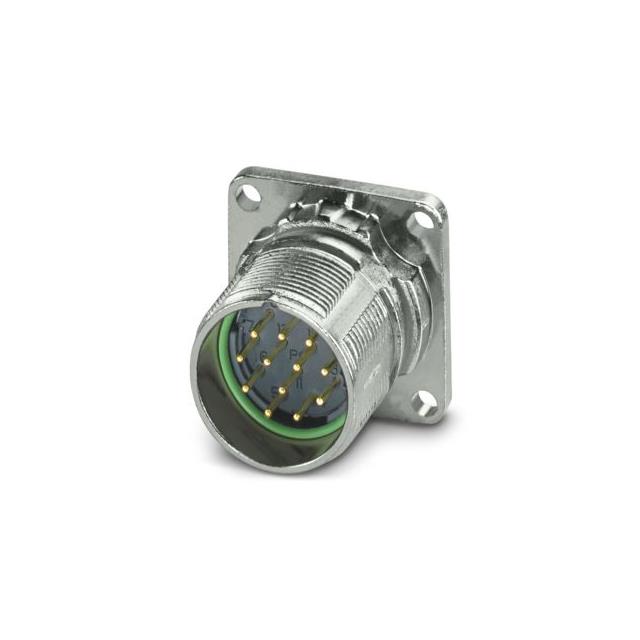

The Phoenix Contact 1629082 is an M23 PRO series device connector designed for front mounting in industrial environments. It features a straight, male plug configuration with 12 positions and crimp pin contacts. The housing provides IP67 protection and supports standard and ONECLICK fast locking systems. Rated voltage is 150 V with a rated surge voltage of 2.5 kV. It operates under overvoltage category III and degree of pollution 3 conditions.

Feature Summary

• Front mounting design for secure installation
• IP67 rated housing for environmental protection
• Compatible with standard and ONECLICK fast locking systems

Applications

• Industrial automation signal transmission
• Process control sensor connections
• Factory equipment interface modules

Procurement Notes

Verify the specific contact type requirements as contacts are not supplied with this connector housing. Confirm that the application environment aligns with the specified overvoltage category and pollution degree ratings to ensure long-term reliability and safety compliance in industrial settings.

Selection Notes

Select this model when a robust, shielded M23 connector with front mounting capability is required. Ensure compatibility with the ONECLICK or standard locking mechanism used in the assembly. Verify that the 12-position layout matches the circuit design needs before procurement.

Part Context

This component belongs to the M23 PRO series, which is engineered for demanding industrial applications requiring high durability and reliable signal integrity. The series emphasizes quick connection capabilities and standardized interfaces for efficient system integration.

Replacement Considerations

Ensure substitute parts maintain the same M23 thread size, 12-position count, and IP67 rating. Verify compatibility with existing locking mechanisms and mounting constraints to avoid mechanical interference during installation.

FAQ

Are contacts included with the 1629082 connector?

No, contacts are not supplied with this device connector; they must be purchased separately.

What locking systems does this connector support?

It supports both standard and ONECLICK fast locking systems for flexible installation options.
