1634161

Overview

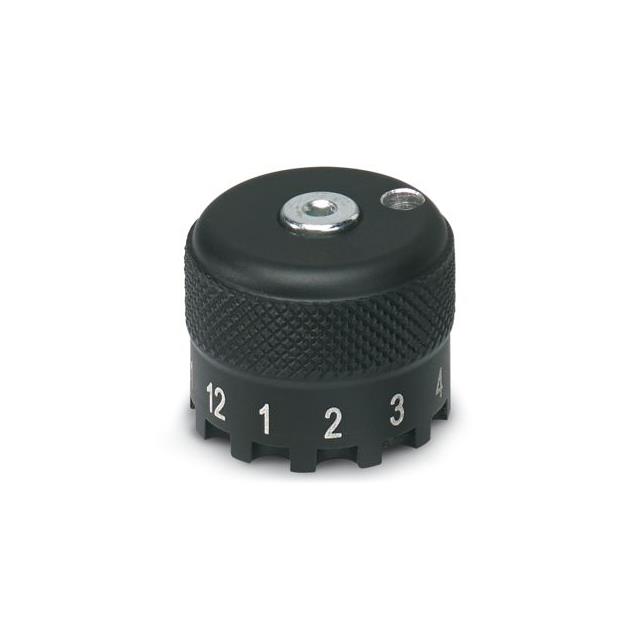

The Phoenix Contact LC-0158-02 (Part Number 1634161) is a replacement crimp locator designed for use with manual crimping pliers, specifically model 1634155. It facilitates precise contact placement during the assembly of electrical connections. This component is engineered for crimping turned contacts with diameters of 1 mm and 2 mm. It supports wire cross-sections ranging from 0.06 mm² to 2.5 mm², ensuring accurate alignment for consistent crimp quality in manual termination processes.

Feature Summary

• Serves as a dedicated replacement locator for manual crimping pliers
• Ensures precise positioning for turned contacts during assembly
• Compatible with specific manual plier models for standardized operation

Applications

• Manual crimping of turned contacts using specified pliers
• Replacement of worn or lost locators for maintenance
• Precision electrical connection assembly requiring aligned crimps

Procurement Notes

Verify that the part number matches exactly 1634161 or LC-0158-02. Confirm compatibility with manual crimping pliers model 1634155 before purchase. Ensure the application involves turned contacts within the specified diameter and cross-section ranges. Check supplier authenticity to avoid counterfeit components.

Selection Notes

Select this component only if replacing a locator for manual pliers model 1634155. It is suitable for turned contacts with 1 mm and 2 mm diameters. Verify wire cross-section requirements fall between 0.06 mm² and 2.5 mm². Do not use with automated tools or different plier models.

Part Context

This item is an accessory for Phoenix Contact's manual crimping tooling system. It functions as a wear part to maintain precision in manual termination tasks. The product is categorized under press accessories and tool components rather than standalone connectors or terminals.

Replacement Considerations

Use part number 1634161 (LC-0158-02) as a direct replacement for the original locator in manual pliers 1634155. No alternative substitutes are documented.
