Edgeboard Connectors Overview

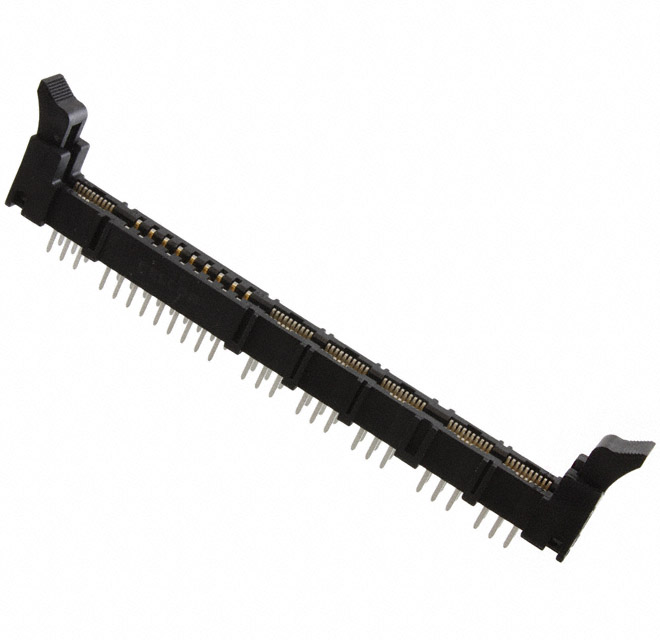

The 1651826-1 is a standard card edge connector manufactured by TE Connectivity AMP Connectors. It features a female contact configuration with a vertical right-angle mounting style. The connector provides 30 positions, specifically arranged as 18 power and 12 signal contacts. It utilizes gold-plated contacts to ensure reliable electrical performance and includes a black insulator body. The component is designed for high-current applications, supporting a current rating of 25 A.

Edgeboard Connectors Feature Summary

• Vertical right-angle design for compact board integration
• Gold-plated contacts for enhanced conductivity
• Combined power and signal position layout

Edgeboard Connectors Applications

• Power supply module interconnects
• Voltage regulator module (VRM) connections
• High-density electronic system backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix and packaging quantity against the official TE Connectivity datasheet before purchase. Confirm that the required current rating of 25 A aligns with the application's thermal and electrical requirements. Ensure compatibility with the target PCB stack-up and mating connector specifications to prevent mechanical interference or signal integrity issues during assembly.

Edgeboard Connectors Selection Notes

Select this component when a vertical right-angle card edge connector is required for mixed power and signal routing. The 30-position layout accommodates both high-current power delivery and data transmission in a single interface. Consider the 25 A current rating and gold plating for environments demanding robust electrical stability and corrosion resistance.

Edgeboard Connectors Part Context

This part belongs to the TE Connectivity AMP Connectors portfolio, which specializes in reliable interconnection solutions. The AMP brand, now part of TE Connectivity, has a long history of developing press-fit and crimp technologies. This connector represents the company's focus on providing standardized, high-performance components for complex electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the official TE Connectivity cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains the same 30-position count, vertical orientation, and 25 A current rating to preserve system functionality.
